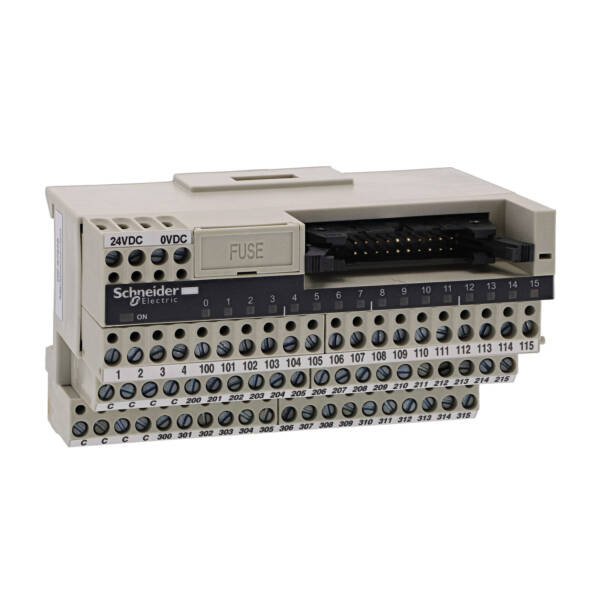

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This miniature passive connection sub-base provides 16 modularity input/output channels. It has 3 terminals per channel. It is a sub base with a maximum supply current of 1.8A and a rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.26kg. It is suitable for all types of industrial applications. This product is certified by GL, BV, CSA, UL, DNV and LROS. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Brand

Schneider Electric

Range

Advantys Telefast ABE 7

Part No

ABE7H16C31

Weight (kg)

0.24 kg

Type

Advantys Telefast ABE 7

Connection for NPN-sensors

FALSE

Housing colour

Other

Thread sleeves sensor/actuator slots

Other

With potential separation

FALSE

Material of contact surface

Other

Degree of protection (IP)

Other

Housing material

Plastic

Pollution degree

1

With LED indication

FALSE

Explosion safety category for dust

Other

Explosion safety category for gas

Other

Material insulation body

Other

Cable length configurable

FALSE

Type of branches for sensor-/actuator cables

Other

Fix cable version suitable for cable guide chain

FALSE

Operating temperature

20…80 Degrees celsius
