"PanelSeT SM compact enclosure with mounting plate - 1800x1000x400 mm" - Schneider Electric - NSYSM181040P

"PanelSeT SM compact enclosure with mounting plate - 1800x1000x400 mm" - Schneider Electric - NSYSM181040P

NSYSM181040P

Spacial SM compact enclosure with mounting plate - 1800x1000x400 mm - Schneider Electric - NSYSM181040P

Enclosures

~~List Price £898.88 +VAT~~

Our Price £674.16 +VAT

SAVE 26% OFF List Price

Fast Track Delivery Product

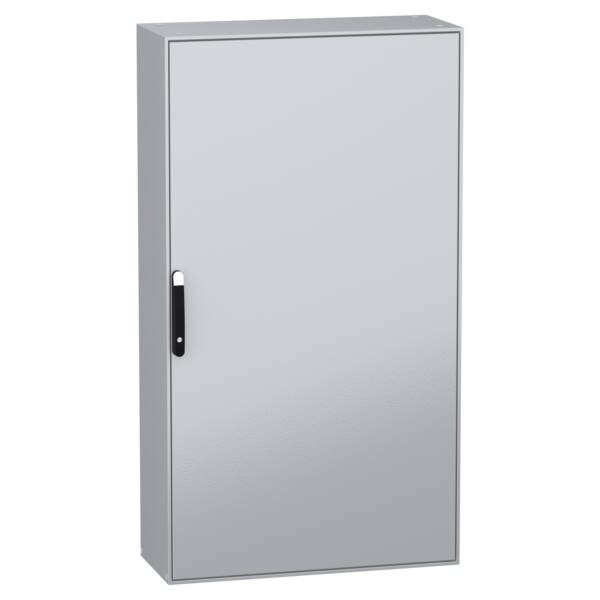

"PanelSeT SM is a multi-purpose floor-standing enclosure designed for use in harsh environments" "It is made of galvanised steel mounting plate, sheet steel body, sheet steel door and zamak hinge" "It provides a high level of protection with its IK10 (IEC62262) and IP55 (IEC60529) ratings" "The enclosure has a nominal height, width and depth of 1800mm, 1000mm and 400mm respectively" "It is finished in grey color (RAL7035) with an epoxy-polyester powder surface and the handle is made in black color (RAL9005)" "It consists of one body, one cable gland plate, four mounting plate brackets, one mounting plate, one door and a locking system with handle on the door" "The door can be opened up to 120°, allowing easy access to the equipment inside" "The four-point lock with a handle with 5mm double-bar insert ensures the safety of the equipment" "The doors and the mounting plate brackets can be removed for maintenance purposes" "The net weight of the enclosure is 140kg and it is certified by DNV, BV and UL"

Brand: Schneider Electric
Range: PanelSeT SM
Part No: NSYSM181040P
Weight (kg): 139.71 kg
Type: Spacial SM
With mounting plate: TRUE
With glazed door: FALSE
Wall fastening possible: TRUE
Suitable for metrical mounting: TRUE
RAL-number: 7035
Tackable: FALSE
Height: 1800
Degree of protection (IP): IP55
Pitched roof: FALSE
Colour: Grey
Width: 1000
Surface finishing: Powder coating
Material: Steel
Number of doors: 1
Suitable for outdoor set-up: FALSE
Number of locks: 1
Material quality: Other
Depth: 400
Wall build in: FALSE
Mounting plate depth-adjustable: FALSE
Impact strength: IK10
With ventilation door: FALSE
EMC-version: FALSE
Degree of protection (NEMA): 12
Pole fastening: FALSE
With backside door: FALSE
Floor installation possible: TRUE

Datasheet for NSYSM181040P - "PanelSeT SM compact enclosure with mounting plate - 1800x1000x400 mm" - Schneider Electric - NSYSM181040P

Download
