"PanelSet S3X stainless 316L, Scotch Brite® finish, H300xW200xD150 mm." - Schneider Electric - NSYS3X3215H

"PanelSet S3X stainless 316L, Scotch Brite® finish, H300xW200xD150 mm." - Schneider Electric - NSYS3X3215H

NSYS3X3215H

SPACIAL S3X stainless 316L, Scotch Brite® finish, H300xW200xD150 mm. - Schneider Electric - NSYS3X3215H

Enclosures

~~List Price £706.71 +VAT~~

Our Price £530.03 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

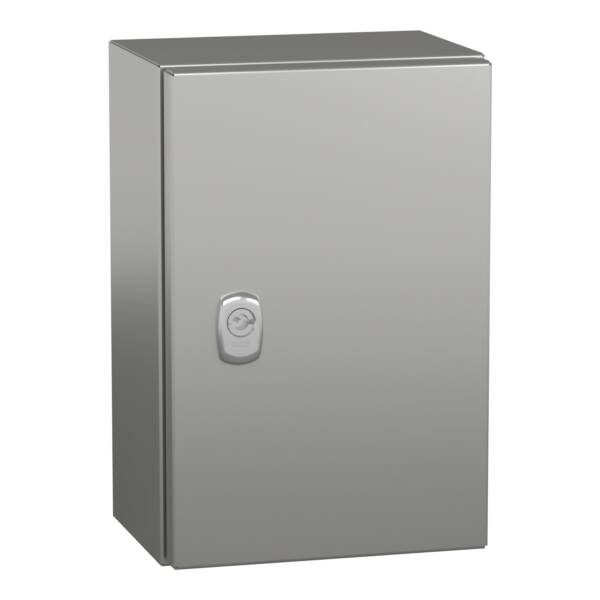

"PanelSet S3X is a wall-mounting enclosure made of stainless steel 316L, designed for multi-purpose applications" "This enclosure has a nominal height, width and depth of 300mm, 200mm and 150mm respectively" "The enclosure is made with Scotch-Brite® brushed surface finish and a chromium plated lock" "It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529)" "The enclosure consists of a body, a plain door and a 3mm double-bar lock" "The door can be opened up to 120°, allowing easy access to the equipment inside" "It is possible to change the opening side of the door (reversible)" "The door can be removed for maintenance purposes" "The net weight of the enclosure is 3,12kg and it has certifications from UL 508 type A and CAN/CSA 22"

Brand: Schneider Electric
Part No: NSYS3X3215H
Weight (kg): 3.12 kg
With mounting plate: FALSE
With glazed door: FALSE
Wall fastening possible: TRUE
Suitable for metrical mounting: TRUE
RAL-number: 7035
Tackable: FALSE
Height: 300
Degree of protection (IP): IP55
Pitched roof: FALSE
Colour: Stainless steel
Width: 200
Surface finishing: Other
Number of doors: 1
Material: Stainless steel
Number of locks: 1
Suitable for outdoor set-up: FALSE
Material quality: Stainless steel V4A
Wall build in: FALSE
Depth: 150
Mounting plate depth-adjustable: FALSE
Impact strength: IK10
With ventilation door: FALSE
EMC-version: FALSE
Degree of protection (NEMA): 12
With backside door: FALSE
Pole fastening: FALSE
Floor installation possible: FALSE

Datasheet for NSYS3X3215H - "PanelSet S3X stainless 316L, Scotch Brite® finish, H300xW200xD150 mm." - Schneider Electric - NSYS3X3215H
