"PanelSet S3X stainless 304L, Scotch Brite® finish, H300xW250xD150 mm." - Schneider Electric - NSYS3X302515

"PanelSet S3X stainless 304L, Scotch Brite® finish, H300xW250xD150 mm." - Schneider Electric - NSYS3X302515

NSYS3X302515

SPACIAL S3X stainless 304L, Scotch Brite® finish, H300xW250xD150 mm. - Schneider Electric - NSYS3X302515

Enclosures

~~List Price £245.93 +VAT~~

Our Price £184.45 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

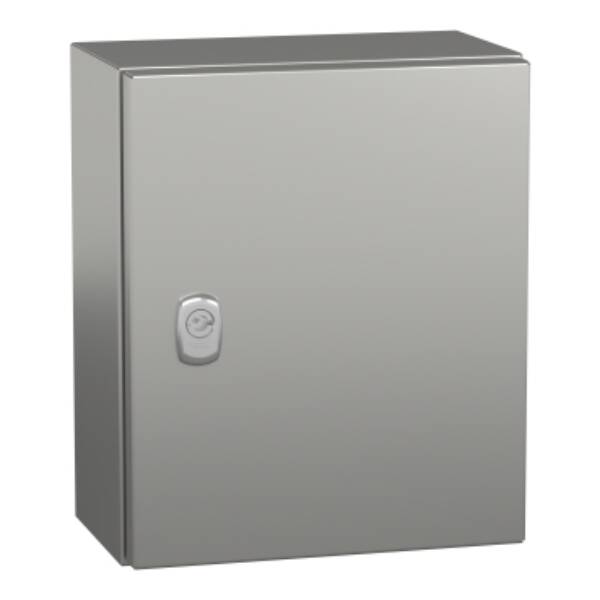

"PanelSet S3X stainless steel 304L wall-mounting enclosure for a multi-purpose application and resistance to corrosion" "It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529)" "This enclosure has a nominal height, width and depth of 300mm, 250mm and 150mm respectively" "The enclosure is made with Scotch-Brite® brushed surface finish" "The enclosure consists of a body, a plain door and one lock" "The door can be opened up to 120°, allowing easy access to the equipment inside" "It is possible to change the opening side of the door (reversible)" "The door has a 3mm double-bar lock insert" "The door can be removed for maintenance purposes" "The net weight of the enclosure is 3,53kg" "It is certified to UL 508 type A and CAN/CSA 22 standards"

Brand: Schneider Electric
Part No: NSYS3X302515
Weight (kg): 3.53 kg
With mounting plate: FALSE
With glazed door: FALSE
Wall fastening possible: TRUE
Suitable for metrical mounting: TRUE
RAL-number: 7035
Tackable: FALSE
Height: 300
Degree of protection (IP): IP55
Pitched roof: FALSE
Colour: Stainless steel
Width: 250
Surface finishing: Other
Material: Stainless steel
Number of doors: 1
Suitable for outdoor set-up: FALSE
Number of locks: 1
Material quality: Stainless steel V4A
Wall build in: FALSE
Depth: 150
Mounting plate depth-adjustable: FALSE
Impact strength: IK10
With ventilation door: FALSE
EMC-version: FALSE
Degree of protection (NEMA): 12
Pole fastening: FALSE
With backside door: FALSE
Floor installation possible: FALSE

Datasheet for NSYS3X302515 - "PanelSet S3X stainless 304L, Scotch Brite® finish, H300xW250xD150 mm." - Schneider Electric - NSYS3X302515
