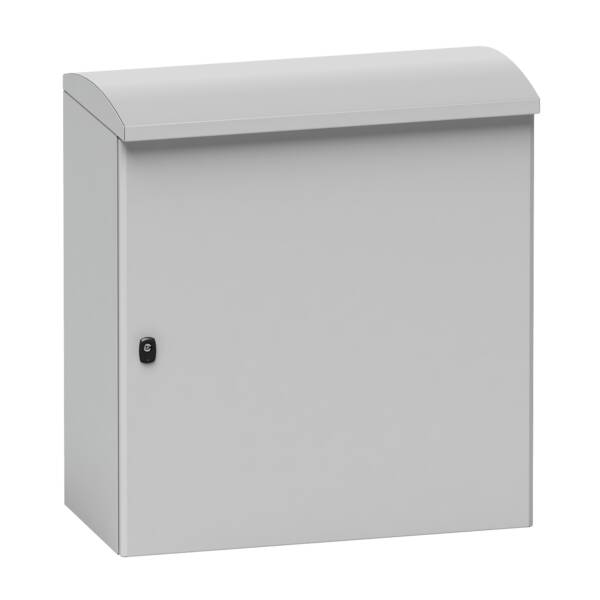

"This S3HD is an outdoor, heavy-duty (HD) enclosure designed for wall-mounting and made of coated steel" "It is suitable for installation in private areas with harsh environments" "The body is made of steel with anti-corrosive painting that provides corrosion resistance up to C4H level according to ISO 12944:2018" "The doors are reversible up to 120°" "The enclosure has nominal dimensions of 448mm height with canopy, 300mm width, and 230mm depth with canopy, with a canopy height of 48mm" "The doors are secured with a one-point lock and have a 3mm double-bar locking system" "The enclosure is colored grey (RAL 7035) and has an epoxy-polyester powder surface structured finish" "The enclosure comes with one body, one door, one 3mm double locking system, one door retainer, one canopy bolted to the body, one gland plate bolted to the body, and one document pocket" "The net weight of the enclosure is 7,07kg" "The enclosure can be fixed on a wall by means of optional stainless-steel wall fixing lugs or on a post by means of an optional HD post fixing device" "This S3HD is rated IK10 (IEC 62262) for impact resistance and IP66 (IEC 60529) for dust and water protection" "It conforms to UL 508 A 2007, IEC 61969-3 2011 (Bureau Veritas), IEC 61439-5 2010 (Bureau Veritas), IEC 62208 2011 (DEKRA), and ISO 12944 2007 (Bureau Veritas)" "The enclosure is also certified by BV, LR, UL, GL, DNV, and cUL" "It has a single piece body and a gutter-shaped front rail double sheet thickness" "The enclosure is designed to withstand solar radiation up to 1120 W/m², surrounding air up to 180 km/h, ultraviolet degradation, formation of ice and frost, and fauna and flora according to IEC 61969-3:2011" "It also has a C4H level climatic withstand according to ISO 12944:2018 and a C4H level relative humidity according to ISO 12944 at 40-40°C" "The enclosure is accessible from the front"

Brand

Schneider Electric

Range

PanelSeT for outdoors operation​

Part No

NSYS3HD4320

Weight (kg)

7.07 kg

Type

Spacial SFHD / S3HD, Thalassa PHD
