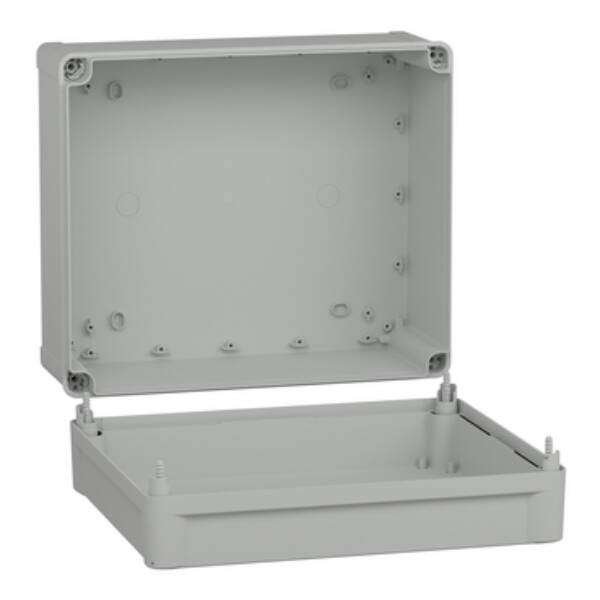

"This TBP is a wall-mounted box made of polycarbonate" "It is designed for multi-purpose applications and can be used indoor or outdoor" "The box has a grey (RAL 7035) body and a high plain cover" "The enclosure has a nominal height, width, and depth of 341 mm, 291 mm, and 168 mm, respectively" "The internal dimensions of the box are 325 mm x 275 mm x 160 mm" "The cover is closed by four captive flat screws located outside the sealed area of the box to maintain IP" "The box has a class II electrical insulation that prevents electric shocks and allows the building of totally insulated solutions" "It is also resistant to fire up to 960°C in accordance with IEC 62208 standard" "The box offers high protection against dust and water with an IP66 rating (NEMA 4,4X) and is impact resistant with an IK08 rating (IEC 62262)" "It can be stored in ambient air temperatures ranging from -15 to 60°C and used in ambient air temperature ranging from -25 to 80 °C without affecting its performance" "The product is UL certified"

Brand

Schneider Electric

Range

PanelSeT TBP

Part No

NSYTBP342916H

Weight (kg)

1.91 kg

Type

Thalassa TBP

Surface protection

Untreated

With mounting plate

FALSE

Type of cover

Cover

Extension possible

FALSE

RAL-number

7035

Type of door

None

Height

341

Internal depth

160

Degree of protection (IP)

IP66

Transparent cover/door

FALSE

Cover model

Closed

Colour

Grey

Circuit integrity

None

Width

291

Suitable for outdoor use

TRUE

Material housing

Plastic

Mounting method

Surface mounted (plaster)

Protection class

II

Depth

168

With lock

FALSE

Impact strength

IK08

Degree of protection (NEMA)

4X
