NSYS3DM6615T

Spacial S3DM H600xW600xD150.IP66 IK10 RAL7035. top and bottom. - Schneider Electric - NSYS3DM6615T

Enclosures

~~List Price £271.52 +VAT~~

Our Price £203.64 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

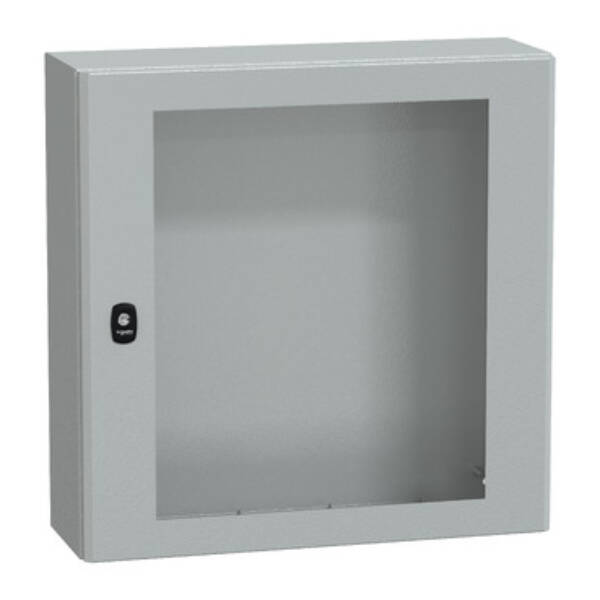

The PanelSet S3DM wall-mounting compact enclosure comes in grey colour and designed for modular distribution application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), steel and security glass (door), making it durable and resistant. It has IP66 and IK08 protection level, which can help protect against impact, water and dust. The dimensions are (W) 600 mm x (H) 600 mm x (D) 150 mm. It is designed for installation of a modular chassis DLM. It features a gutter-shaped front rail double sheet thickness, single piece body. The door type is glazed, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 points lock, 3 mm double-bar lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This compact enclosure is BV, DNV, GL, LR, c. UL certified. This compact enclosure is BV, DNV, GL, LR, c. UL certified.

Brand: Schneider Electric
Part No: NSYS3DM6615T
Weight (kg): 19.50 kg
With mounting plate: FALSE
With glazed door: TRUE
Wall fastening possible: TRUE
Suitable for metrical mounting: TRUE
RAL-number: 7035
Tackable: FALSE
Height: 600
Degree of protection (IP): IP66
Pitched roof: FALSE
Colour: Grey
Width: 600
Surface finishing: Powder coating
Number of doors: 1
Material: Steel
Number of locks: 1
Suitable for outdoor set-up: FALSE
Material quality: Other
Depth: 150
Wall build in: FALSE
Mounting plate depth-adjustable: FALSE
Impact strength: IK08
With ventilation door: FALSE
EMC-version: FALSE
Degree of protection (NEMA): 4X
With backside door: FALSE
Pole fastening: TRUE
Floor installation possible: FALSE

Datasheet for NSYS3DM6615T - "PanelSet S3DM H600xW600xD150.IP66 IK10 RAL7035. top and bottom." - Schneider Electric - NSYS3DM6615T

Download
