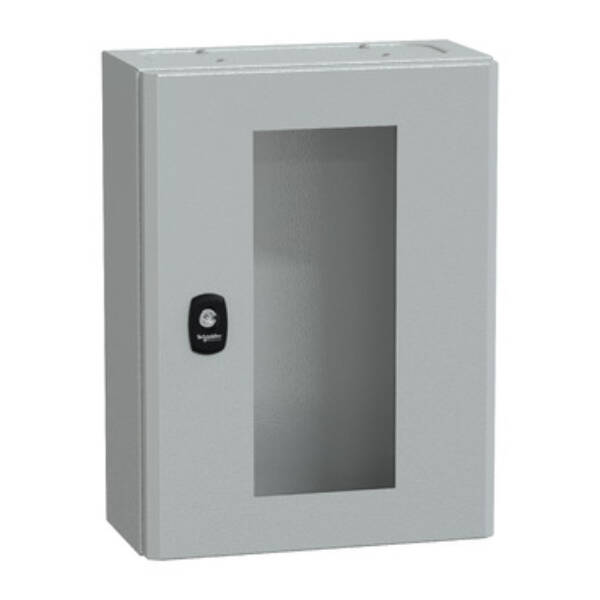

This S3DM is a modular distribution enclosure designed for wall-mounting The body is made of coated steel and the door is made of steel with security glass The enclosure has nominal dimensions of 400mm height, 300mm width, and 150mm depth The doors are reversible up to 120° and are secured with a three-point lock and have a 3mm double-bar locking system The enclosure is colored grey (RAL 7035) and has an epoxy-polyester powder surface structured finish The enclosure comes with two cable gland plates (top and bottom), one body, one door, one 3mm double locking system, and one document holder The enclosure is rated IK08 (IEC 62262) for impact resistance and IP66 (IEC 60529) for dust and water protection It conforms to UL, LR, GL, BV, cUL, and DNV standards Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This compact enclosure is BV, DNV, GL, LR, c. UL certified. This compact enclosure is BV, DNV, GL, LR, c. UL certified.

Brand

Schneider Electric

Part No

NSYS3DM4315T

Weight (kg)

5.18 kg

With mounting plate

FALSE

With glazed door

TRUE

Wall fastening possible

TRUE

Suitable for metrical mounting

TRUE

RAL-number

7035

Tackable

FALSE

Height

400

Degree of protection (IP)

IP66

Pitched roof

FALSE

Colour

Grey

Width

300

Surface finishing

Powder coating

Material

Steel

Number of doors

1

Number of locks

1

Suitable for outdoor set-up

FALSE

Material quality

Other

Wall build in

FALSE

Depth

150

Mounting plate depth-adjustable

FALSE

Impact strength

IK08

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

4X

Pole fastening

TRUE

With backside door

FALSE

Floor installation possible

FALSE
