on-delay timing relay - 1 s..100 h - 24..240 V AC - solid state output - Schneider Electric - RE17LHBM

on-delay timing relay - 1 s..100 h - 24..240 V AC - solid state output - Schneider Electric - RE17LHBM

RE17LHBM

on-delay timing relay - 1 s..100 h - 24..240 V AC - solid state output - Schneider Electric - RE17LHBM

Control

~~List Price £52.78 +VAT~~

Our Price £39.59 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

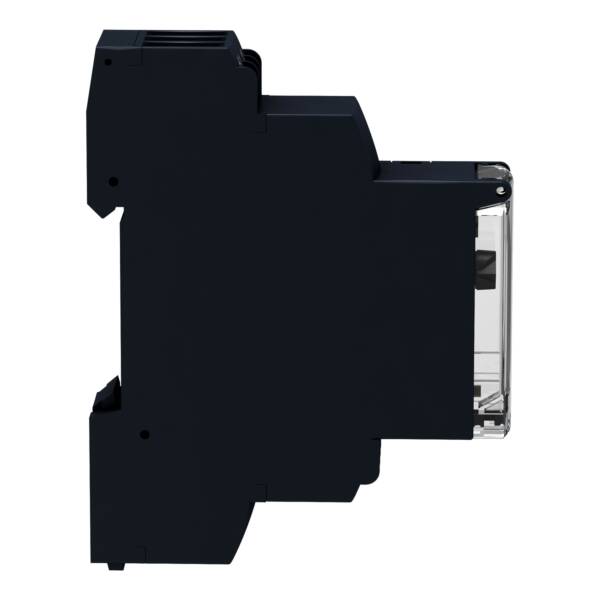

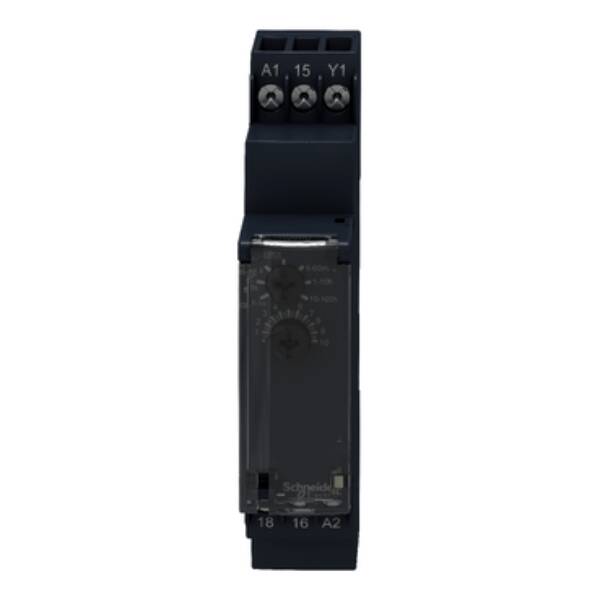

This Harmony RE17L timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 0.7A, is 17.5mm wide and can be supplied with 24V to 240V AC. It also has a solid state output. It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric
Range: Harmony Timer Relays
Part No: RE17LHBM
Weight (kg): 0.07 kg
Type: Harmony Timer Relays
Type of electric connection: Screw connection
Function delay on de-energization: FALSE
Clock function, starting with pause, variable: FALSE
Pluggable on auxiliary contact block: FALSE
Clock function, starting with pulse, variable: FALSE
Number of outputs, undelayed, change-over contact: 1
Function floating contact on de-energization: FALSE
Function pulse shaping: TRUE
Suitable for front mounting: FALSE
Function delay-on energization: FALSE
Voltage type for actuating: AC/DC
Height: 90
With semiconductor output: TRUE
Suitable for DIN rail (top hat rail) mounting: TRUE
Width: 17.5
Rated control supply voltage Us at AC 50HZ: 24…240 V
Rated control supply voltage Us at AC 60HZ: 24…240 V
Function floating contact on energization: FALSE
Depth: 72
Outputs, reversible delayed/undelayed: FALSE
With plug-in socket: FALSE
Function star-delta: FALSE
Function flashing, starting with pause, fixed time: FALSE
Function flashing, starting with pulse, fixed time: FALSE
Remote operation possible: FALSE
Suitable for remote control: FALSE
Time range: 0.1…360000 s

Datasheet for RE17LHBM - on-delay timing relay - 1 s..100 h - 24..240 V AC - solid state output - Schneider Electric - RE17LHBM

Download
