Brand
-
Schneider Electric
-
Range
-
Modicon M171/M172/M173
-
Part No
-

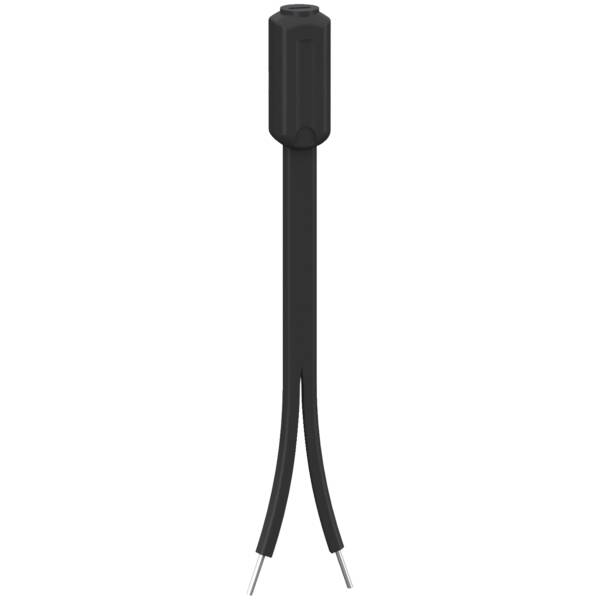

TM1STNTCRN61530
-
Weight (kg)
-
0.03 kg
-
Type
-
Modicon M171/M172
-
Error registration possible
-
FALSE
-
Trend representation
-
FALSE
-
Average temperature measuring
-
FALSE
-
Supporting protocol for MP (multi point)
-
FALSE
-
Suitable for duct mounting
-
TRUE
-
Suitable for ceiling mounting
-
FALSE
-
Material element
-
Other
-
Fixed cable to sensor
-
TRUE
-
Insert length
-
15
-
With reverse polarity protection
-
FALSE
-
Standby push button
-
FALSE
-
Number of measuring points
-
1
-
Passive temperature measurement
-
TRUE
-
Measurement of relative air humidity
-
FALSE
-
Wireless
-
FALSE
-
Measurement of VOC
-
FALSE
-
Scope of application
-
Immersion tube
-
Sensor element outside housing
-
FALSE
-
Active temperature measurement
-
FALSE
-
Suitable for liquids
-
FALSE
-
Temperature measuring range
-
-50…110 Degrees celsius
-
Diameter sensor element
-
6
-
Compatible with Apple HomeKit
-
FALSE
-
Compatible with Google Assistant
-
FALSE
-
Compatible with Amazon Alexa
-
FALSE
-
Housing height
-
6
-
Housing width
-
15
-
Measurement of CO2
-
FALSE
-
Measurement of dewpoint
-
FALSE
-
With display
-
FALSE
-
Suitable for tube mounting
-
TRUE
-
Cable length
-
3
-
Sensor element inside housing
-
TRUE
-
Type of electric connection
-
Other
-
NFC (Near Field Communication)
-
FALSE
-
Tolerance
-
1
-
With housing
-
TRUE
-
IFTTT support available
-
FALSE
-
Wi-Fi-compatible
-
FALSE
-
Suitable for gases
-
TRUE
-
Housing colour
-
Black
-
Type of power supply
-
None
-
Supporting protocol for KNX
-
FALSE
-
Degree of protection (IP)
-
IP67
-
Enthalpy measurement
-
FALSE
-
Offset setting possible
-
FALSE
-
Potentiometer with adjustment knob
-
FALSE
-
Particulate matter measurement (PM)
-
FALSE
-
Sensor type
-
NTC, 10K
-
Supporting protocol for BACnet
-
FALSE
-
Measurement of absolute air humidity
-
FALSE
-
LoRa technology
-
FALSE
-
Suitable for air
-
TRUE
-
Explosion-proof
-
FALSE
-
Supporting protocol for Modbus
-
FALSE
-
UV resistant
-
TRUE
-
Bluetooth
-
FALSE
-
Suitable for wall mounting
-
FALSE
-
With mounting material
-
FALSE
-
Technology
-
Other
-
Sensor length
-
15
-
Number of output signals
-
1
