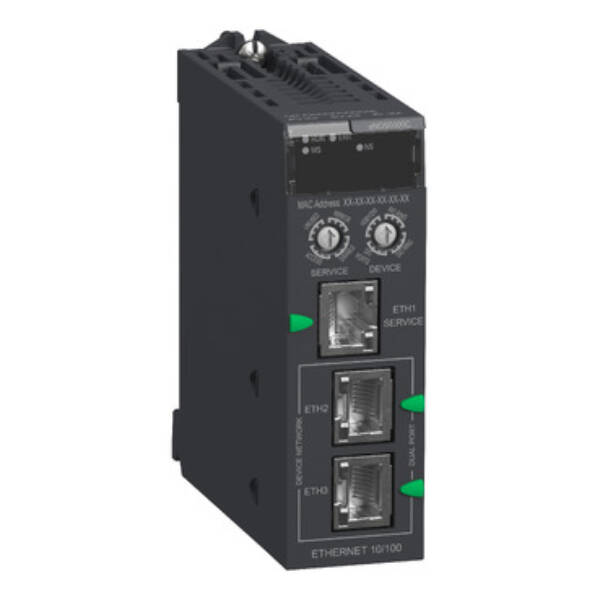

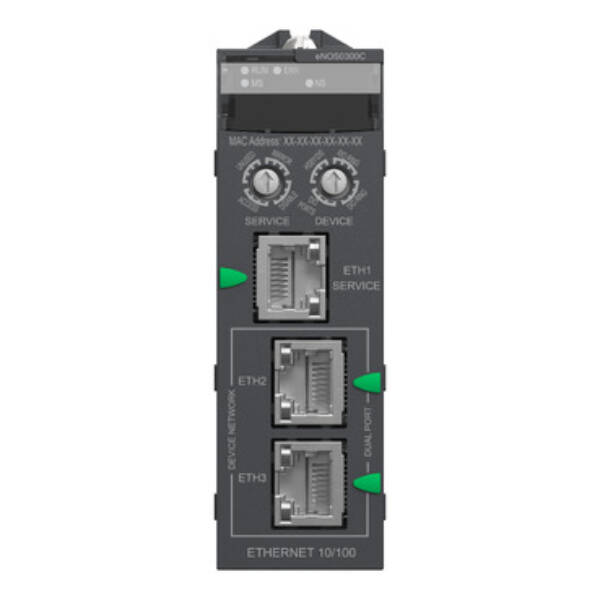

"This ethernet switch module is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580." "This switch module is equipped with 1 EtherNet/IP for service port and 2 EtherNet/IP for device network." "Thanks to a protective coating on its circuit board, this product can be used in harsh environments with a temperature range from -25°C to +60°C/-13°F to 140°F." "Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs." "Its casing provides IP20 protection of the electronics and offers 1425539 hours of MTBF." "This module dimensions are 32x100x86mm." "This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation." "This product complies with CE, UL, CSA, RCM, and EAC standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications." "This product is compatible with BMEXBP backplane." "The product must be installed on the rack and fixed with 2 screws." "Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC)." "Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs."

Brand

Schneider Electric

Range

Modicon X80 I/Os

Part No

BMENOS0300C

Weight (kg)

0.26 kg

Type

Modicon X80 I/Os

Number of ports 10/100 Mbps RJ45

3

Manageable

TRUE

Height

100

Degree of protection (IP)

IP20

Compatible with Grade2TV according to XP-C 90-483

FALSE

Compatible with Grade3TV according to XP-C 90-483

FALSE

Width

32

Layer 2

FALSE

Layer 3

FALSE

Mounting method

Other

Depth

101.5

Power over Ethernet (PoE)

Other

Ethernet

TRUE
