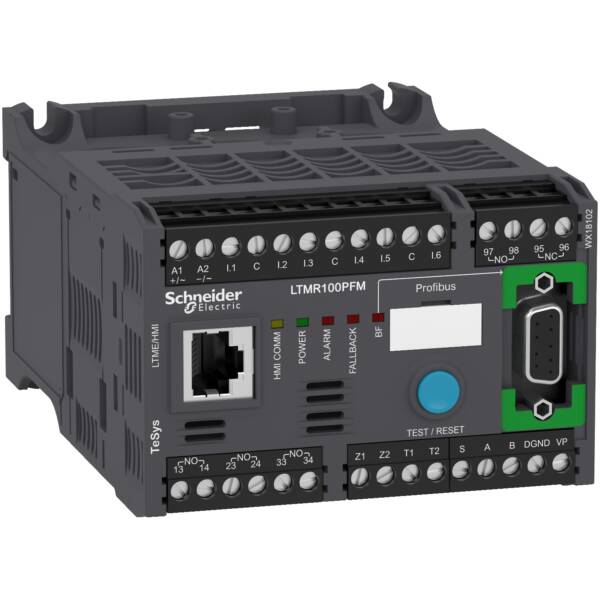

TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. TeSys T manages most critical processes while reducing downtime and increasing productivity. TeSys T is a flexible system that integrates seamlessly into your automation system through five major communication protocols. TeSys T predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. This controller is the central component in the motor management system. The module manages the basic functions of the motor management system. It manages the measurement of 3 phase current via integral current transformers from 0.4 to 100 A or up to 810 A by external current transformers. It also measures ground current with internal or external ground sensors, motor temperature and the inputs and outputs for the various motor control modes, detected fault management and other functions. Profibus DP protocol is used by this controller. This module has 6 discrete logic inputs, 3 relay logic outputs and a relay output for detected fault signaling overload relay. The current range of this controller is 5 to 100 amperes. 100 to 240VAC is used to power this controller. Controller has the following certifications: UL, CSA NOM, ATEX, BV, EAC, RINA, LROS, DNV, ABS, GL, KERI, RMRoS, C-Tick and CCC.

Brand

Schneider Electric

Range

TeSys T

Part No

LTMR100PFM

Weight (kg)

0.53 kg

Type

TeSys T

Voltage type (supply voltage)

AC

Number of outputs, with contact

5

Current detection module

TRUE

Rated voltage Ue at AC 50 Hz

93.5…264 Volt

Type of electrical connection for auxiliary- and control current circuit

Screw connection

Type of interface

PROFIBUS

Rated operation current Ie

5…100 Ampere

Supply voltage AC 50 Hz

93.5…264 Volt

Input for analogue temperature sensor

TRUE

Input for earth fault detection

TRUE

Supply voltage AC 60 Hz

93.5…264 Volt

Height

61

Type of connection system

Screw connection

Degree of protection (IP)

IP20

Rated voltage Ue at AC 60 Hz

93.5…264 Volt

Voltage detection module

FALSE

Number of electronic outputs

3

Width

91

Number of digital inputs

6

Input for thermistor connection

TRUE

Depth

122.5

Rated operating frequency

50…60 Hertz
