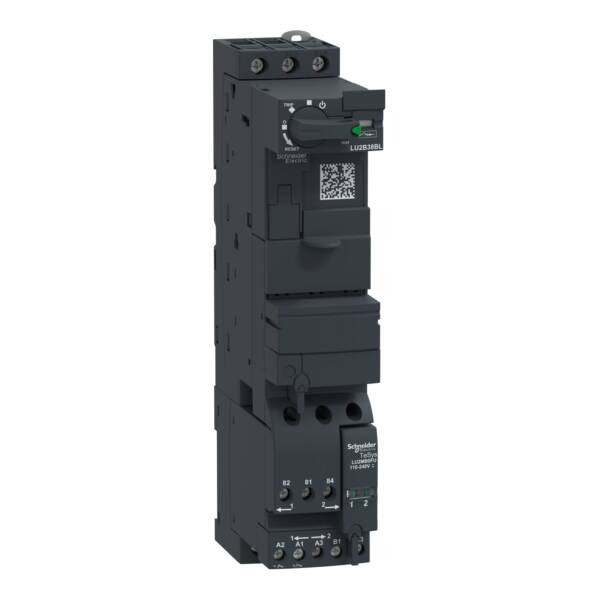

TeSys U standard reversing power base, 3 poles (3NO), rated 38A/690V, to be completed with a control unit LUC to form a TeSys U reversing starter controller, for 3-phase motor applications up to 18.5kW@400V. Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a "all in one" reversing starter controller with basic or advanced protection and control functions. It is equipped with a reverser module LU2MB0BL to be supplied with 24V DC, auxiliary signaling contacts (1NO+1NC), a control terminal block, blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 25kA@400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine)

Brand

Schneider Electric

Range

TeSys Ultra

Part No

LU2B38BL

Weight (kg)

1.31 kg

Type

TeSys U

Type of electrical connection of main circuit

Screw connection

Rated operation power at AC-3, 400 V

18.5

Rated conditional short-circuit current, type 1, 480 Y/277 V

10000

Supporting protocol for SERCOS

FALSE

Rated conditional short-circuit current, type 2, 230 V

25000

Rated operation current Ie

38

Rated conditional short-circuit current, type 1, 600 Y/347 V

4000

Ambient temperature, upper operating limit

70

With transformer

FALSE

External reset possible

FALSE

Rated operation current at AC-3, 400 V

38

Type of electrical connection for auxiliary- and control current circuit

Screw connection

Rated conditional short-circuit current, type 2, 400 V

25000

Voltage type for actuating

DC

Height

224

Supporting protocol for INTERBUS-Safety

FALSE

Number of command positions

3

Width

45

Number of auxiliary contacts as normally closed contact

1

Number of auxiliary contacts as normally open contact

1

Supporting protocol for AS-Interface Safety at Work

FALSE

Coordination class according to IEC 60947-4-3

Class 2

Depth

126

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

Supporting protocol for SafetyBUS p

FALSE

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Rated operation power at AC-3, 230 V, 3-phase

9

Supporting protocol for ASI

FALSE

Kind of motor starter

Reversing starter

Supporting protocol for PROFIBUS

FALSE

Supporting protocol for TCP/IP

FALSE

Supporting protocol for CAN

FALSE

Degree of protection (IP)

IP20

Supporting protocol for INTERBUS

FALSE

Rail mounting possible

TRUE

Supporting protocol for DeviceNet

FALSE

Supporting protocol for MODBUS

FALSE

Supporting protocol for Data-Highway

FALSE

Suitable for emergency stop

FALSE

Supporting protocol for LON

FALSE

With fuse

FALSE

Supporting protocol for other bus systems

FALSE

With short-circuit release

TRUE

Supporting protocol for SUCONET

FALSE

Rated power, 575 V, 60 Hz, 3-phase

18.5

Rated power, 460 V, 60 Hz, 3-phase

18.5

Rated control supply voltage Us at DC

24 V
