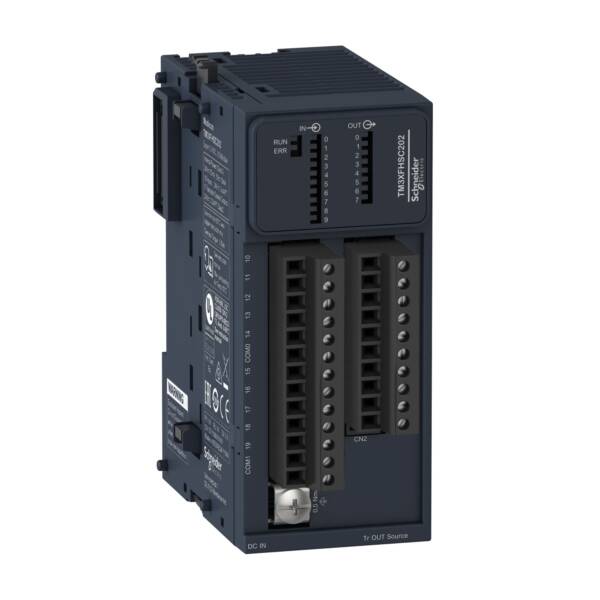

Module hight speed counting, Modicon TM3, 2 channels HSC Event management, 10 inputs, 8 outputs (screw) - Schneider Electric - TM3XFHSC202
Module hight speed counting, Modicon TM3, 2 channels HSC Event management, 10 inputs, 8 outputs (screw) - Schneider Electric - TM3XFHSC202

TM3XFHSC202

Module hight speed counting, Modicon TM3, 2 channels HSC Event management, 10 inputs, 8 outputs (screw) - Schneider Electric - TM3XFHSC202

Automation

List Price £602.36 +VAT

Our Price £481.89 +VAT

SAVE 20% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
"This product is part of Modicon TM3, a range of expansion I/O modules for Modicon plcs." "This counter module provides 10 fast inputs and 8 fast outputs." "It is a high-speed counter with reflex output management and event management." "It is used to count the pulses generated by a sensor or to process signals from an incremental encoder." "Its counting frequency is 200kHz. It works via a 24VDC external power supply." "It is furnished with a removable screw terminal for electrical connection with pitch 3.81mm adjustment for inputs and supply." "It is an IP20-rated product. Its dimensions are 39mm wide, 85mm deep and 90mm high. It weighs 0.150kg" "It is designed to accept high-speed pulse-type input signals for counting and to provide high-speed pulse-type output signals." "This product is certified by CSA, cULus, IACS E10, RCM, CE, UKCA and EAC." "This module is compatible with Modicon M262 motion/logic controller and is configurable with EcoStruxure machine expert software." "It is delivered in 1 package (PCE type)." "It is mounted on a symmetrical DIN rail. Or with a specific kit for plate or panel mounting." "The specially developed Modicon TM3 I/O system enables flexible and customizable expansion of the I/O terminals in all the controllers." "From design and development to commissioning and maintenance, EcoStruxure Machine Expert is a complete machine-building solution."
Brand
Schneider Electric
Range
Modicon TM3
Part No
TM3XFHSC202
Weight (kg)
0.32 kg
Type
Modicon TM3
Single-axis positioning possible
FALSE
Number of functions
2
Single-axis controller possible
FALSE
Suitable for multi-axis positioning
FALSE
SIL according to IEC 61508
None
Suitable for counting
TRUE
Suitable for weighting
FALSE
Suitable for temperature control
FALSE
Appendant operation agent (Ex ia)
FALSE
Performance level acc. EN ISO 13849-1
None
Suitable for NC
FALSE
Height
90
Suitable for SSI
FALSE
Appendant operation agent (Ex ib)
FALSE
Suitable for welding control
FALSE
Suitable for pressure control
FALSE
Width
39
Suitable for incremental data detection
FALSE
Suitable for safety functions
FALSE
Function electronic positioning available
TRUE
Suitable for CNC
FALSE
Explosion safety category for dust
None
Depth
85
Suitable for detection absolute value
FALSE
Explosion safety category for gas
None
Flux controller possible
FALSE
Suitable for flux measurement
FALSE
Suitable for flying saw
FALSE
Suitable for multi-axis control
FALSE
Suitable for path controller
FALSE
Suitable for cam controller
FALSE

Datasheet for TM3XFHSC202 - Module hight speed counting, Modicon TM3, 2 channels HSC Event management, 10 inputs, 8 outputs (screw) - Schneider Electric - TM3XFHSC202
