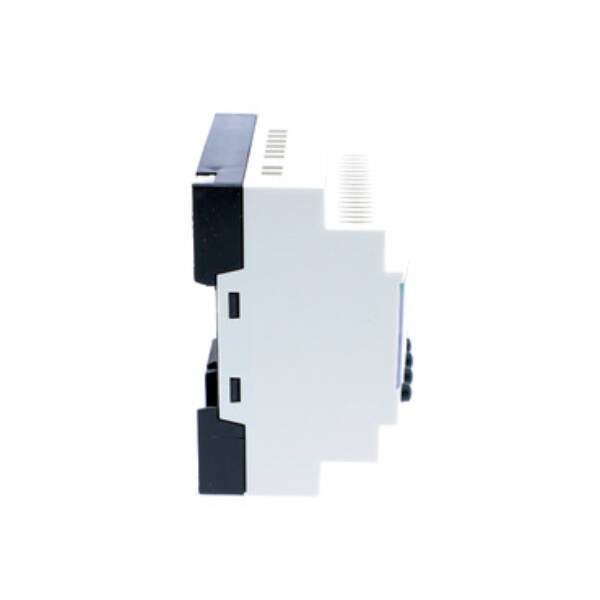

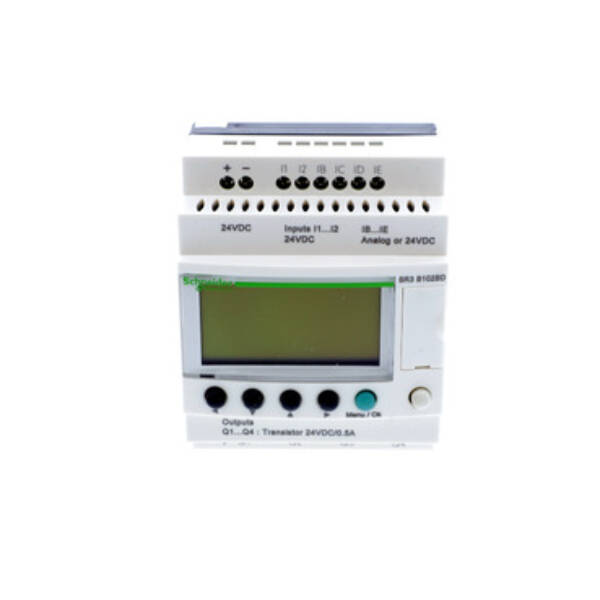

"This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 up to 40 I/Os." "It is a modular smart relay with 6 digital inputs, 4 analog outputs, 4 relay outputs, and a display." "It is a 24VDC modular smart relay." "This modular smart relay provides a real alternative to solutions based on cabled logic or specific cards." "It is equipped with a display and a clock." "It is programmed with Zelio Soft 2 software. The programming language is FBD or LADDER." "It is an P20 (terminal block) and IP40 (front panel) rated product. It weighs 0.22kg." 0 "This product is certified by GL, C-Tick, GOST, UL and CSA." "It is compatible with memory cartridge, I/O extension modules and communication modules (GSM or UMTS modem, Modbus serial link, Ethernet Modbus/TCP)." "It is delivered in 1 package (PCE type)." "It mounts on a 35mm DIN rail." "Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards." "Zelio Logic is simple to select, install, and program, and suitable for all your applications."

Brand

Schneider Electric

Range

Smart Relays - Zelio Logic

Part No

SR3B102BD

Weight (kg)

0.21 kg

Type

Smart Relays - Zelio Logic

Expandable

TRUE

Supporting protocol for SERCOS

FALSE

Number of HW-interfaces other

1

SIL according to IEC 61508

None

With optical interface

FALSE

Performance level acc. EN ISO 13849-1

None

Basic device

TRUE

Radio standard GPRS

FALSE

With relay output

FALSE

Height

90

Supporting protocol for INTERBUS-Safety

FALSE

Category according to EN 954-1

1

Width

71.2

Redundancy

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Radio standard GSM

FALSE

Explosion safety category for dust

None

Radio standard UMTS

FALSE

Depth

59.5

Explosion safety category for gas

None

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

Expansion device

FALSE

With display

TRUE

Supporting protocol for SafetyBUS p

FALSE

Voltage type of supply voltage

DC

With timer

TRUE

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Radio standard Bluetooth

FALSE

Supporting protocol for ASI

FALSE

Radio standard WLAN 802.11

FALSE

Appendant operation agent (Ex ia)

FALSE

Supporting protocol for PROFIBUS

FALSE

Supporting protocol for TCP/IP

FALSE

Front build in possible

TRUE

Supporting protocol for KNX

FALSE

Degree of protection (IP)

IP20

Supporting protocol for CAN

FALSE

Appendant operation agent (Ex ib)

FALSE

Supporting protocol for INTERBUS

FALSE

IO link master

FALSE

Supporting protocol for DeviceNet

FALSE

Rail mounting possible

TRUE

Number of digital outputs

4

Suitable for safety functions

FALSE

Switching current

0.5

Supporting protocol for MODBUS

FALSE

Number of digital inputs

6

Supporting protocol for Data-Highway

FALSE

Supply voltage DC

24 V

Number of analogue inputs

4

Rack-assembly possible

FALSE

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

TRUE

Number of HW-interfaces RS-232

1
