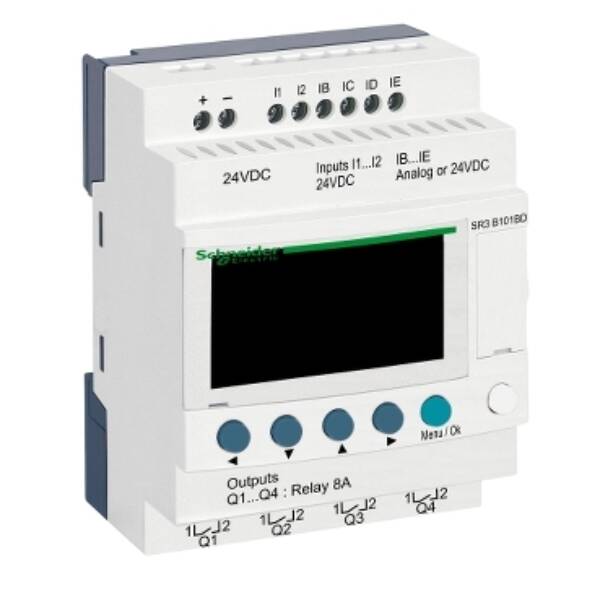

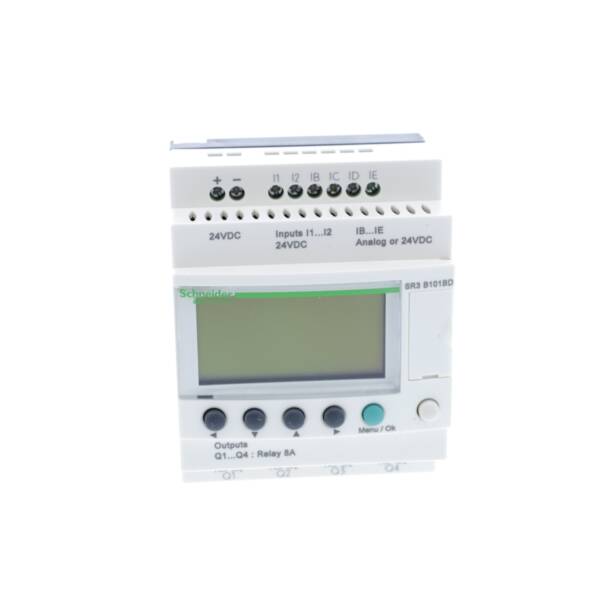

modular smart relay Zelio Logic - 10 I O - 24 V DC - clock - display - Schneider Electric - SR3B101BD
modular smart relay Zelio Logic - 10 I O - 24 V DC - clock - display - Schneider Electric - SR3B101BD

SR3B101BD

modular smart relay Zelio Logic - 10 I O - 24 V DC - clock - display - Schneider Electric - SR3B101BD

Automation

List Price £170.42 +VAT

Our Price £136.34 +VAT

SAVE 20% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 to 40 I/Os. The compact smart relay provides a real alternative to solutions based on cabled logic or specific cards. It comes with display and clock. Checks program memory on each power up and 0 to 240 with ladder programming number or control scheme lines. Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards It offers 4 relay outputs with normally opened contact and 6 discrete inputs. It has a rated supply voltage of 24V, a maximum supply current of 100mA (without extension) and a power dissipation of 3W without extension. It is an IP20 and IP40 rated product. It weighs 0.25kg. This product meets EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-11, EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-4 level 3, EN/IEC 61000-4-3, EN/IEC 61000-4-6 level 3, EN/IEC 61000-4-2 level 3, EN/IEC 61000-4-5 and EN/IEC 61000-4-12 standards. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.
Brand
Schneider Electric
Range
Smart Relays - Zelio Logic
Part No
SR3B101BD
Weight (kg)
0.24 kg
Type
Smart Relays - Zelio Logic
Expandable
TRUE
Supporting protocol for SERCOS
FALSE
Number of HW-interfaces other
1
SIL according to IEC 61508
None
With optical interface
FALSE
Performance level acc. EN ISO 13849-1
None
Basic device
TRUE
Radio standard GPRS
FALSE
With relay output
TRUE
Height
90
Supporting protocol for INTERBUS-Safety
FALSE
Category according to EN 954-1
1
Width
71.2
Redundancy
FALSE
Supporting protocol for AS-Interface Safety at Work
FALSE
Radio standard GSM
FALSE
Explosion safety category for dust
None
Radio standard UMTS
FALSE
Depth
59.5
Explosion safety category for gas
None
Supporting protocol for DeviceNet Safety
FALSE
Supporting protocol for EtherNet/IP
FALSE
Supporting protocol for Foundation Fieldbus
FALSE
Expansion device
FALSE
With display
TRUE
Supporting protocol for SafetyBUS p
FALSE
Voltage type of supply voltage
DC
With timer
TRUE
Supporting protocol for PROFINET CBA
FALSE
Supporting protocol for PROFINET IO
FALSE
Supporting protocol for PROFIsafe
FALSE
Radio standard Bluetooth
FALSE
Supporting protocol for ASI
FALSE
Radio standard WLAN 802.11
FALSE
Appendant operation agent (Ex ia)
FALSE
Supporting protocol for PROFIBUS
FALSE
Supporting protocol for TCP/IP
FALSE
Front build in possible
TRUE
Supporting protocol for KNX
FALSE
Degree of protection (IP)
IP20
Supporting protocol for CAN
FALSE
Appendant operation agent (Ex ib)
FALSE
Supporting protocol for INTERBUS
FALSE
IO link master
FALSE
Supporting protocol for DeviceNet
FALSE
Rail mounting possible
TRUE
Switching current
8
Supporting protocol for MODBUS
FALSE
Number of digital outputs
4
Suitable for safety functions
FALSE
Number of digital inputs
6
Supporting protocol for Data-Highway
FALSE
Supply voltage DC
24 V
Number of analogue inputs
4
Rack-assembly possible
FALSE
Supporting protocol for LON
FALSE
Supporting protocol for other bus systems
FALSE
Supporting protocol for SUCONET
FALSE
Wall mounting/direct mounting
TRUE
Number of HW-interfaces RS-232
1

Datasheet for SR3B101BD - modular smart relay Zelio Logic - 10 I O - 24 V DC - clock - display - Schneider Electric - SR3B101BD
