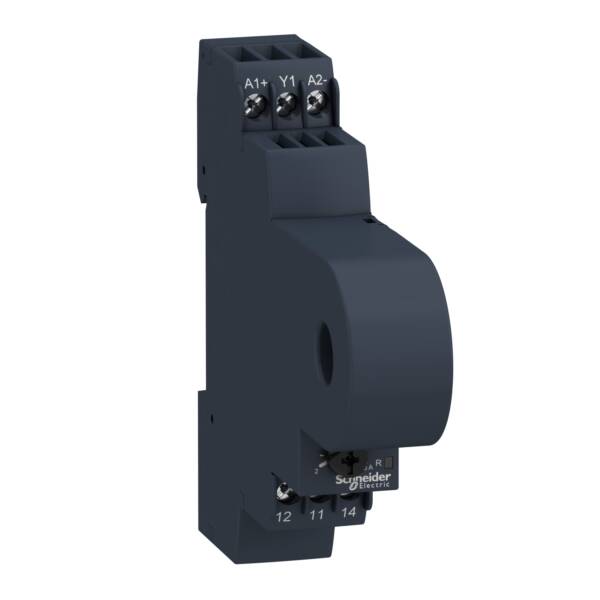

This Harmony RM17-J control relay allows monitoring of current control in 3-phase networks. This modular 3-phase control relay is ideal for monitoring of electrical values and current variation in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Brand

Schneider Electric

Range

Harmony Control Relays

Part No

RM17JC00MW

Weight (kg)

0.12 kg

Type

Harmony Control Relays

Three-phase overcurrent possible

FALSE

Contains function DC-voltage under current

FALSE

Three-phase under current possible

FALSE

Single-phase overcurrent possible

TRUE

Current measuring range

2…20 Ampere

External current transformer

FALSE

Type of electric connection

Screw connection

Voltage type (supply voltage)

AC/DC

Single-phase under current possible

FALSE

Height

90

Single-phase hysteresis possible

FALSE

Three-phase hysteresis possible

FALSE

Width

17.5

Function DC-current hysteresis

FALSE

Contains function DC-voltage overcurrent

FALSE

Depth

72

Number of contacts as change-over contact

1

With detachable clamps

FALSE
