communication module - for TeSys U - Schneider Electric - ASILUFC51

communication module - for TeSys U - Schneider Electric - ASILUFC51

ASILUFC51

communication module - for TeSys U - Schneider Electric - ASILUFC51

Control

~~List Price £136.07 +VAT~~

Our Price £102.05 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

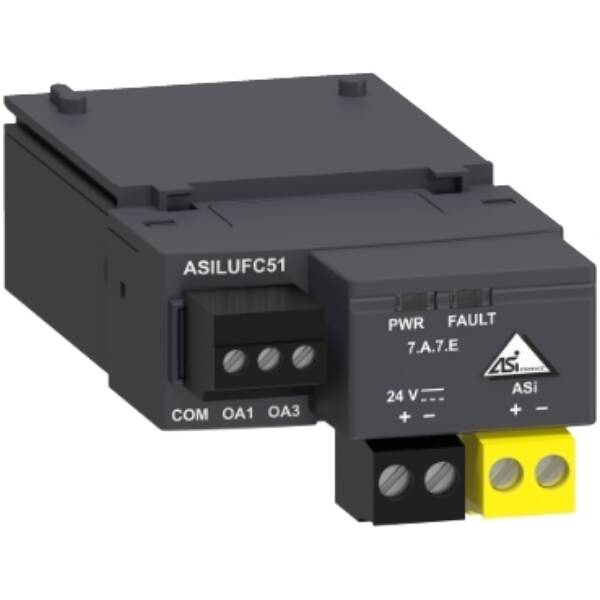

TeSys U communication module for AS-Interface bus, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. It provides a yellow 2-point plug-in connector for connection to an AS-I network (limited to 62 slaves), a black 2-point plug-in connector for connection to an external 24V DC supply. On front side, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11C for a LUB base or LU9MRC for a LU2B base. It displays 2 LEDs indicating 24V voltage presence (PWR) and communication status (FAULT). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),

Brand: Schneider Electric
Range: TeSys Ultra
Part No: ASILUFC51
Weight (kg): 0.06 kg
Type: TeSys U
Supporting protocol for SERCOS: FALSE
SIL according to IEC 61508: None
System accessory: FALSE
Performance level acc. EN ISO 13849-1: None
With potential separation: FALSE
Radio standard GPRS: FALSE
Height: 32
Fieldbus connection over separate bus coupler possible: FALSE
Supporting protocol for INTERBUS-Safety: FALSE
Width: 45
Supporting protocol for AS-Interface Safety at Work: FALSE
Explosion safety category for dust: None
Radio standard GSM: FALSE
Radio standard UMTS: FALSE
Depth: 88
Explosion safety category for gas: None
Supporting protocol for DeviceNet Safety: FALSE
Supporting protocol for EtherNet/IP: FALSE
Supporting protocol for Foundation Fieldbus: FALSE
Supporting protocol for SafetyBUS p: FALSE
Voltage type of supply voltage: DC
Supporting protocol for PROFINET CBA: FALSE
Supporting protocol for PROFINET IO: FALSE
Supporting protocol for PROFIsafe: FALSE
Supporting protocol for ASI: TRUE
Radio standard Bluetooth: FALSE
Appendant operation agent (Ex ia): FALSE
Radio standard WLAN 802.11: FALSE
Supporting protocol for PROFIBUS: FALSE
Front build in possible: TRUE
Supporting protocol for TCP/IP: FALSE
Supporting protocol for KNX: FALSE
Appendant operation agent (Ex ib): FALSE
Degree of protection (IP): IP20
Supporting protocol for CAN: FALSE
IO link master: FALSE
Supporting protocol for INTERBUS: FALSE
Rail mounting possible: FALSE
Supporting protocol for DeviceNet: FALSE
Suitable for safety functions: FALSE
Supporting protocol for MODBUS: FALSE
Supporting protocol for Data-Highway: FALSE
Supply voltage DC: 24 V
Rack-assembly possible: FALSE
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: FALSE
Supporting protocol for SUCONET: FALSE
Wall mounting/direct mounting: FALSE

Datasheet for ASILUFC51 - communication module - for TeSys U - Schneider Electric - ASILUFC51
