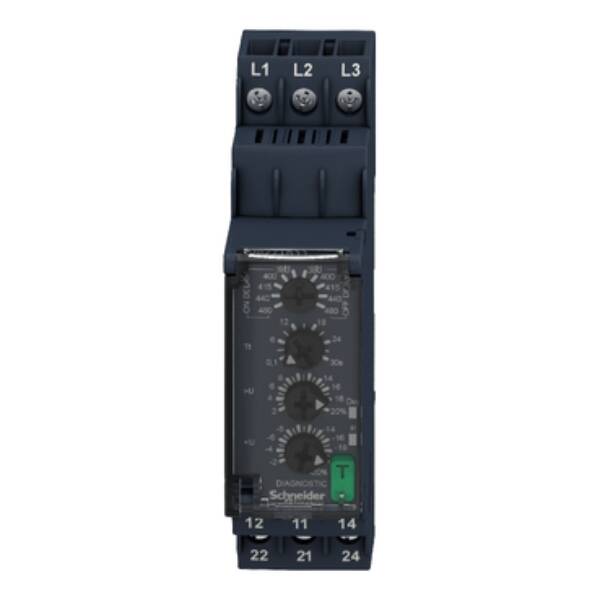

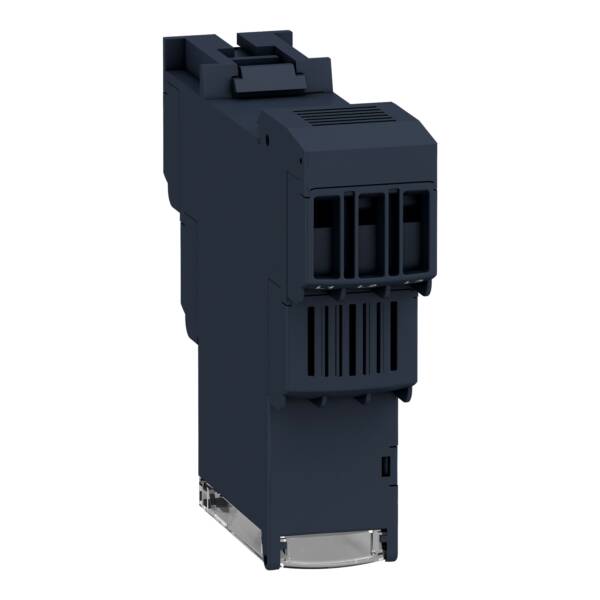

Modular 3-phase control relay, 8 A, 2 CO, 380...480 V AC - Schneider Electric - RM22TR33

Modular 3-phase control relay, 8 A, 2 CO, 380...480 V AC - Schneider Electric - RM22TR33

RM22TR33

Modular 3-phase control relay, 8 A, 2 CO, 380...480 V AC - Schneider Electric - RM22TR33

Control

~~List Price £139.14 +VAT~~

Our Price £104.36 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

This Harmony RM22-TR relay allows monitoring of phase and undervoltage/overtage in 3-phase networks. This modular multi function 3-phase control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric
Range: Harmony Control Relays
Part No: RM22TR33
Weight (kg): 0.10 kg
Type: Harmony Control Relays
Width: 22.5
Rated control supply voltage Us at AC 50HZ: 380…480 V
Rated control supply voltage Us at AC 60HZ: 380…480 V
Type of electric connection: Screw connection
Voltage measurement range: 304…576 V
Phase sequence monitoring: TRUE
Function over voltage detection: TRUE
Phase imbalance monitoring: FALSE
Depth: 73
Phase failure detection: TRUE
Function under voltage detection: TRUE
Number of contacts as change-over contact: 2
Voltage type for actuating: AC
Height: 90
Max. permitted delay-on energization time: 30
With detachable clamps: FALSE
Min. adjustable delay-on energization time: 0.1
Max. permitted off-delay time: 30
Min. adjustable off-delay time: 0.1

Datasheet for RM22TR33 - Modular 3-phase control relay, 8 A, 2 CO, 380...480 V AC - Schneider Electric - RM22TR33

Download
