Standard control unit, TeSys U, 0.35-1.4A, 3P motors, thermal magnetic protection, class 10, coil 48-72V AC/DC - Schneider Electric - LUCA1XES

Standard control unit, TeSys U, 0.35-1.4A, 3P motors, thermal magnetic protection, class 10, coil 48-72V AC/DC - Schneider Electric - LUCA1XES

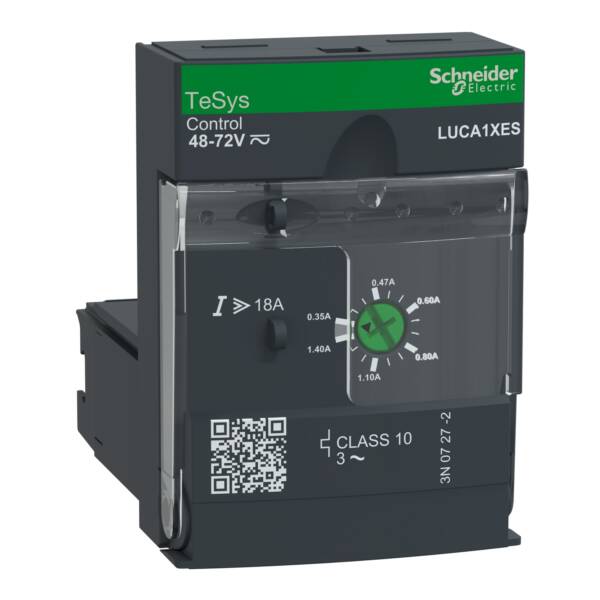

LUCA1XES

Standard control unit, TeSys U, 0.35-1.4A, 3P motors, thermal magnetic protection, class 10, coil 48-72V AC/DC - Schneider Electric - LUCA1XES

Control

~~List Price £73.12 +VAT~~

Our Price £54.84 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

TeSys U standard control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 0.25kW@400V. It provides full protection to motors with a rated current Ir 0.35-1.4A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 48V AC / 48-72V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),

Brand: Schneider Electric
Range: TeSys Ultra
Part No: LUCA1XES
Weight (kg): 0.12 kg
Type: TeSys U
Width: 45
With ground fault protection function: TRUE
Voltage type (supply voltage): AC/DC
Overload release current setting: 0.35…1.4 Ampere
Operating voltage AC 50 Hz: 690 Volt
Rated permanent current Iu: 1.4
Depth: 60
Operating voltage AC 60 Hz: 690 Volt
Short-circuit release function: Undelayed
Type of motor protection: Thermal/magnetic release
Voltage type (operating voltage): AC
Number of poles: 3
External power supply required: TRUE
Height: 66

Datasheet for LUCA1XES - Standard control unit, TeSys U, 0.35-1.4A, 3P motors, thermal magnetic protection, class 10, coil 48-72V AC/DC - Schneider Electric - LUCA1XES

Download
