Modular 1-phase current control relay, 4 mA…1 A, 2 CO, 24…240 V AC/DC - Schneider Electric - RM22JA31MR

Modular 1-phase current control relay, 4 mA…1 A, 2 CO, 24…240 V AC/DC - Schneider Electric - RM22JA31MR

RM22JA31MR

Modular 1-phase current control relay, 4 mA…1 A, 2 CO, 24…240 V AC/DC - Schneider Electric - RM22JA31MR

Control

~~List Price £289.08 +VAT~~

Our Price £216.81 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

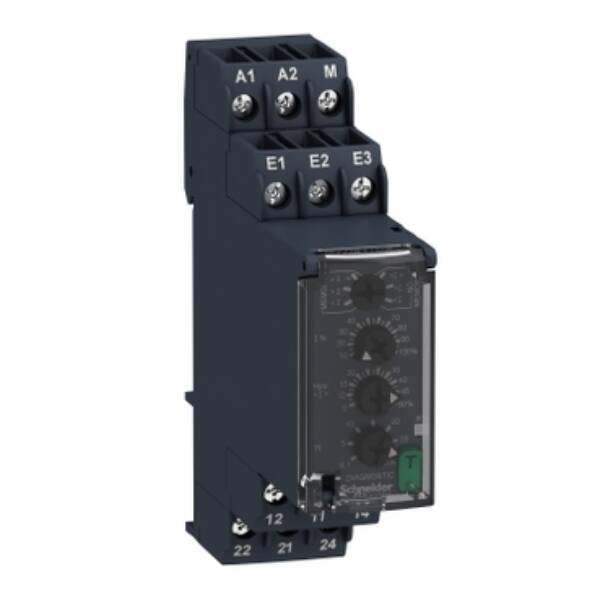

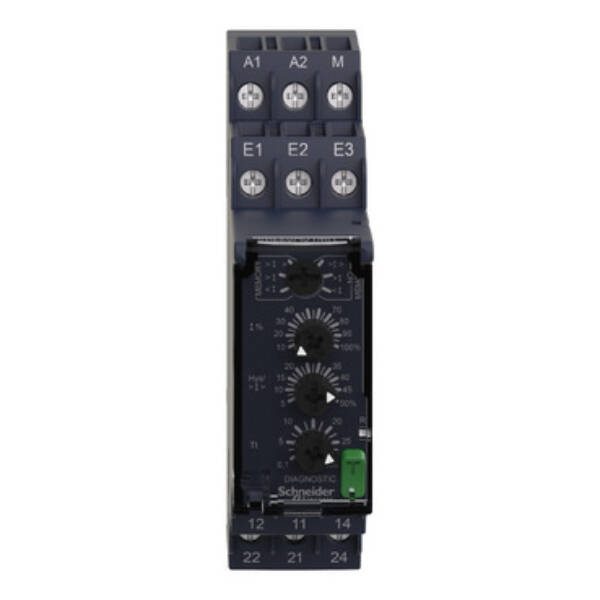

This Harmony RM22JA control relay allows monitoring of current control. This modular control relay is ideal for monitoring of electrical values and current variation in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric
Range: Harmony Control Relays
Part No: RM22JA31MR
Weight (kg): 0.12 kg
Type: Harmony Control Relays
Three-phase over current possible: FALSE
Contains function DC-voltage under current: FALSE
Three-phase under current possible: FALSE
Current measurement range: 0.004…1 A
Single-phase over current possible: TRUE
External current transformer: FALSE
Type of electric connection: Screw connection
Single-phase under current possible: FALSE
Height: 90
Voltage type for actuating: AC/DC
Single-phase hysteresis possible: TRUE
Max. permitted delay-on energization time: 0.3
Three-phase hysteresis possible: FALSE
Width: 22.5
Rated control supply voltage Us at AC 50HZ: 24…240 V
Rated control supply voltage Us at AC 60HZ: 24…240 V
Function DC-current hysteresis: TRUE
Contains function DC-voltage over current: TRUE
Depth: 73
Number of contacts as change-over contact: 2
Rated control supply voltage Us at DC: 24…240 V
With detachable clamps: FALSE

Datasheet for RM22JA31MR - Modular 1-phase current control relay, 4 mA…1 A, 2 CO, 24…240 V AC/DC - Schneider Electric - RM22JA31MR

Download
