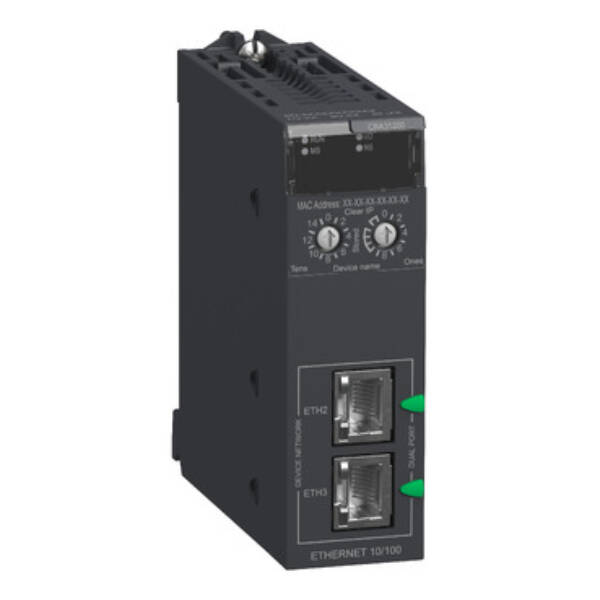

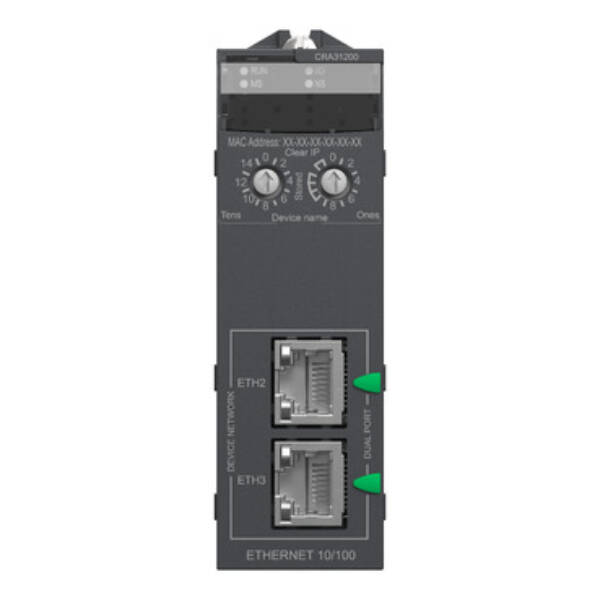

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet Remote Input Output (RIO) drop adaptor has 2 ports. Integrated connection is EtherNet/IP for device network. This product is robust, high quality and based on the latest innovative technology. The input data are collected and published to the remote I/O head adaptor and output modules are updated with the data received from remote I/O head adaptor. It is an IP20 rated product. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, GOST, C-Tick. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This adaptor is compatible with 0 to 128 discrete channels and 0 to 16 analogue channels. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Brand

Schneider Electric

Range

Modicon X80 I/Os

Part No

BMXCRA31200

Weight (kg)

0.23 kg

Type

Modicon X80 I/Os

Supporting protocol for SERCOS

FALSE

SIL according to IEC 61508

None

With optical interface

FALSE

Transmission rate

10000

Performance level according to EN ISO 13849-1

None

With potential separation

FALSE

Certified for UL hazardous location division 2

FALSE

Radio standard GPRS

FALSE

Height

100

Supporting protocol for INTERBUS-Safety

FALSE

Certified for UL hazardous location class I

FALSE

Certified for UL hazardous location class III

FALSE

Certified for UL hazardous location division 1

FALSE

Certified for UL hazardous location class II

FALSE

Width

32

Supporting protocol for EtherCAT

FALSE

Redundancy

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Radio standard GSM

FALSE

Explosion safety category for dust

None

Radio standard UMTS

FALSE

Depth

87.5

Explosion safety category for gas

None

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

TRUE

Supporting protocol for Foundation Fieldbus

FALSE

Certified for UL hazardous location group C (ethylene)

FALSE

Certified for UL hazardous location group A (acetylene)

FALSE

Certified for UL hazardous location group B (hydrogen)

FALSE

Certified for UL hazardous location group F (carbonaceous dusts)

FALSE

Certified for UL hazardous location group G (non-conductive dusts)

FALSE

Certified for UL hazardous location group D (propane)

FALSE

Certified for UL hazardous location group E (metal dusts)

FALSE

Supporting protocol for SafetyBUS p

FALSE

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Radio standard Bluetooth

FALSE

Supporting protocol for ASI

FALSE

Appendant operation agent (Ex ia)

FALSE

Supporting protocol for PROFIBUS

FALSE

Radio standard WLAN 802.11

FALSE

Type of data transmission

Other

Supporting protocol for TCP/IP

TRUE

Supporting protocol for KNX

FALSE

Appendant operation agent (Ex ib)

FALSE

Supporting protocol for CAN

FALSE

Supporting protocol for INTERBUS

FALSE

IO link master

FALSE

Supporting protocol for DeviceNet

FALSE

Suitable for safety functions

FALSE

Supporting protocol for Modbus

TRUE

Supporting protocol for Data-Highway

FALSE

Supporting protocol for LON

FALSE

Power consumption

3.96

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Number of HW-interfaces industrial Ethernet

3
