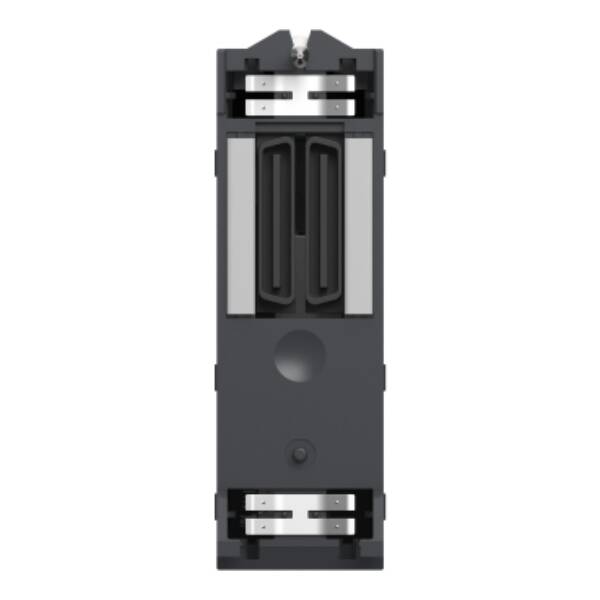

Modicon X80 EIO Drop adapter with Ethernet backplane - Schneider Electric - BMECRA31210
Modicon X80 EIO Drop adapter with Ethernet backplane - Schneider Electric - BMECRA31210

BMECRA31210

Modicon X80 EIO Drop adapter with Ethernet backplane - Schneider Electric - BMECRA31210

Automation

List Price £1,548.17 +VAT

Our Price £1,238.54 +VAT

SAVE 20% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet Remote Input Output (RIO) drop adaptor has 3 ports with Ethernet backplane. Integrated connections are EtherNet/IP for device network and EtherNet/IP for service port. This product is robust, high quality and based on the latest innovative technology. The input data are collected and published to the remote I/O head adaptor and output modules are updated with the data received from remote I/O head adaptor. It is an IP20 rated product. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, GOST, C-Tick. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This adaptor is compatible with multifunction input module BMXERT, Ethernet module BMXNOM, counter module BMXEHC, 0 to 1024 discrete channels, 0 to 256 analogue channels, HART module BMEAH and weighing module PMESWT. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Brand
Schneider Electric
Range
Modicon X80 I/Os
Part No
BMECRA31210
Weight (kg)
0.26 kg
Type
Modicon X80 I/Os
Supporting protocol for SERCOS
FALSE
SIL according to IEC 61508
None
With optical interface
FALSE
Transmission rate
1000
With potential separation
FALSE
Performance level acc. EN ISO 13849-1
None
Radio standard GPRS
FALSE
Height
100
Supporting protocol for INTERBUS-Safety
FALSE
Category according to EN 954-1
1
Width
32
Redundancy
FALSE
Supporting protocol for AS-Interface Safety at Work
FALSE
Radio standard GSM
FALSE
Explosion safety category for dust
None
Radio standard UMTS
FALSE
Depth
87.5
Explosion safety category for gas
None
Supporting protocol for DeviceNet Safety
FALSE
Supporting protocol for EtherNet/IP
TRUE
Supporting protocol for Foundation Fieldbus
FALSE
Supporting protocol for SafetyBUS p
FALSE
Supporting protocol for PROFINET CBA
FALSE
Supporting protocol for PROFINET IO
FALSE
Supporting protocol for PROFIsafe
FALSE
Supporting protocol for ASI
FALSE
Radio standard Bluetooth
FALSE
Supporting protocol for PROFIBUS
FALSE
Appendant operation agent (Ex ia)
FALSE
Radio standard WLAN 802.11
FALSE
Type of data transmission
Serial
Supporting protocol for TCP/IP
TRUE
Supporting protocol for KNX
FALSE
Supporting protocol for CAN
FALSE
Appendant operation agent (Ex ib)
FALSE
IO link master
FALSE
Supporting protocol for INTERBUS
FALSE
Supporting protocol for DeviceNet
FALSE
Suitable for safety functions
FALSE
Supporting protocol for MODBUS
TRUE
Supporting protocol for Data-Highway
FALSE
Supporting protocol for LON
FALSE
Supporting protocol for other bus systems
FALSE
Supporting protocol for SUCONET
FALSE
Number of HW-interfaces industrial Ethernet
3
