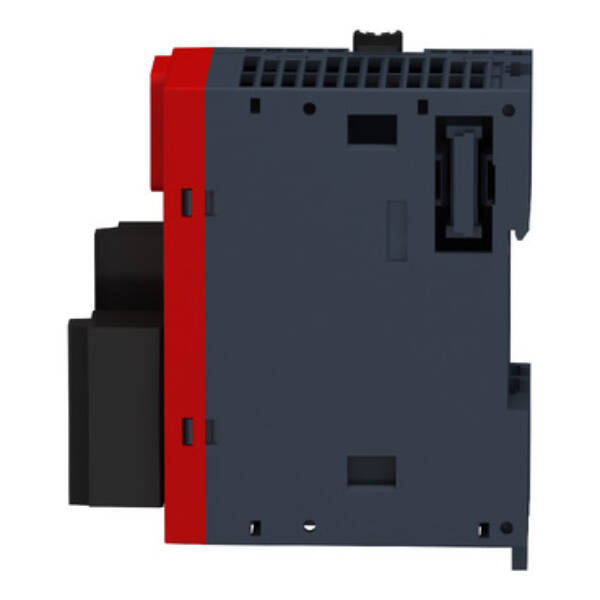

Modicon TM3 Safety module - 1 Function, Cat 4 PL e/SIL CL3 (screw) 24Vdc - Schneider Electric - TM3SAF5R

TM3SAF5R

Modicon TM3 Safety module - 1 Function, Cat 4 PL e/SIL CL3 (screw) 24Vdc - Schneider Electric - TM3SAF5R

Automation

List Price £272.41 +VAT

Our Price £217.93 +VAT

SAVE 20% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
This TM3 safety expansion module monitors emergency shutdown pushbuttons and limit switches. It meets the requirements of PL e/Category 4 conforming to EN/ISO 13849-1 and SILCL3 conforming to EN/IEC 62061. It has a module locking latch, 2 TM3 bus connectors designed to provide continuity of the link between connected modules, a symmetrical rail locking clip, display block for the module channels and diagnostics. It completes your Modicon M221, M241 or M251 PLC configuration with a dedicated safety I/O, without the need to use a complete safety controller. It has removable terminals for easier and better control wires tightening, thus improving installation reliability.
Brand
Schneider Electric
Range
Modicon TM3
Part No
TM3SAF5R
Weight (kg)
0.28 kg
Type
Modicon TM3
Type of control voltage 2
DC
Release-delay
0.04 Second
Model
Other
Type of electric connection
Screw connection
Voltage type (supply voltage)
DC
With feedback circuit
FALSE
Number of outputs, safety related, undelayed, with contact
3
With approval according to UL
TRUE
SIL according to IEC 61508
3
Control voltage 1
24 Volt
Type of control voltage 1
DC
Control voltage 2
24 Volt
Evaluation inputs
Other
With approval for TÜV
TRUE
Stop category according to IEC 60204
1
Performance level according to EN ISO 13849-1
Level e
Voltage type (operating voltage)
DC
With approval for BG BIA
FALSE
Height
94
Suitable for monitoring of position switches
FALSE
Suitable for monitoring of tactile sensors
FALSE
Suitable for monitoring of valves
FALSE
Width
43.7
Rated switch current
1.1
Rail mounting possible
TRUE
Type of safety according to IEC 61496-1
None
Supply voltage DC
24 Volt
Depth
73
Power consumption
1.1
Operating voltage DC
24 Volt
Suitable for monitoring of magnetic switches
FALSE
Suitable for monitoring of proximity switches
FALSE
Suitable for monitoring of emergency-stop circuits
TRUE
Suitable for monitoring of optoelectronic protection equipment
FALSE
With start input
FALSE
With muting function
FALSE
With detachable clamps
FALSE

Datasheet for TM3SAF5R - Modicon TM3 Safety module - 1 Function, Cat 4 PL e/SIL CL3 (screw) 24Vdc - Schneider Electric - TM3SAF5R
