Modicon TM3 - 8 relay outputs (screw) 24Vdc - Schneider Electric - TM3DQ8R
Modicon TM3 - 8 relay outputs (screw) 24Vdc - Schneider Electric - TM3DQ8R

TM3DQ8R

Modicon TM3 - 8 relay outputs (screw) 24Vdc - Schneider Electric - TM3DQ8R

Automation

List Price £123.01 +VAT

Our Price £98.41 +VAT

SAVE 20% OFF List Price
Fast Track Delivery Product
Get in touch

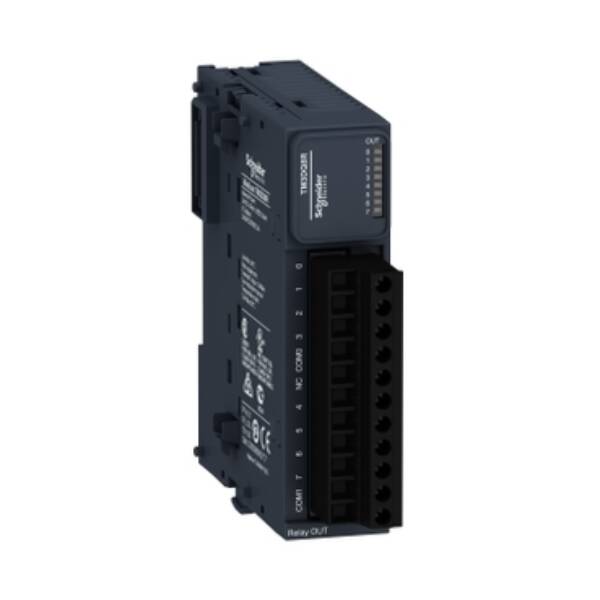

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete output module provides 8 relay outputs with sink or source (positive/negative) logic. It is an output module with an output voltage of 240V AC, 30V DC and a current consumption of 40mA at 24V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and supply at 1500V AC, output and internal logic at 500V AC. It is furnished with removable screw terminal for electrical connection with 5.08mm pitch adjustment for outputs. It offers mechanical durability of 20 million cycles. It is an IP20 rated product. Its dimensions are 27.4mm (Width) x 84.6mm (Depth) x 90mm (Height). It weighs 0.13kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Brand
Schneider Electric
Range
Modicon TM3
Part No
TM3DQ8R
Weight (kg)
0.24 kg
Type
Modicon TM3
Supporting protocol for SERCOS
FALSE
SIL according to IEC 61508
None
With optical interface
FALSE
System accessory
FALSE
Digital inputs configurable
FALSE
Digital outputs configurable
FALSE
Permitted voltage at output
30…264 Volt
Performance level according to EN ISO 13849-1
None
Certified for UL hazardous location division 2
FALSE
Radio standard GPRS
FALSE
Time delay at signal change
10 Millisecond
Height
90
Fieldbus connection over separate bus coupler possible
FALSE
Supporting protocol for INTERBUS-Safety
FALSE
Certified for UL hazardous location class I
FALSE
Certified for UL hazardous location class III
FALSE
Certified for UL hazardous location division 1
FALSE
Certified for UL hazardous location class II
FALSE
Width
27.4
Supporting protocol for EtherCAT
FALSE
Supporting protocol for AS-Interface Safety at Work
FALSE
Explosion safety category for dust
None
Radio standard GSM
FALSE
Radio standard UMTS
FALSE
Depth
84.6
Explosion safety category for gas
None
Supporting protocol for DeviceNet Safety
FALSE
Supporting protocol for EtherNet/IP
FALSE
Supporting protocol for Foundation Fieldbus
FALSE
Certified for UL hazardous location group C (ethylene)
FALSE
Certified for UL hazardous location group A (acetylene)
FALSE
Certified for UL hazardous location group B (hydrogen)
FALSE
Certified for UL hazardous location group F (carbonaceous dusts)
FALSE
Certified for UL hazardous location group G (non-conductive dusts)
FALSE
Certified for UL hazardous location group D (propane)
FALSE
Certified for UL hazardous location group E (metal dusts)
FALSE
Output current
2
Type of electric connection
Screw connection
Supporting protocol for SafetyBUS p
FALSE
Voltage type (supply voltage)
AC/DC
Short-circuit protection, outputs available
FALSE
Supporting protocol for PROFINET CBA
FALSE
Supporting protocol for PROFINET IO
FALSE
Supporting protocol for PROFIsafe
FALSE
Type of digital output
Relay
Supporting protocol for ASI
FALSE
Radio standard Bluetooth
FALSE
Supporting protocol for PROFIBUS
FALSE
Radio standard WLAN 802.11
FALSE
Appendant operation agent (Ex ia)
FALSE
Supply voltage AC 50 Hz
240 Volt
Supporting protocol for TCP/IP
FALSE
Supply voltage AC 60 Hz
240 Volt
Front built-in possible
FALSE
Supporting protocol for KNX
FALSE
Degree of protection (IP)
IP20
Appendant operation agent (Ex ib)
FALSE
Supporting protocol for CAN
FALSE
IO link master
FALSE
Type of output voltage
AC/DC
Supporting protocol for INTERBUS
FALSE
Rail mounting possible
TRUE
Supporting protocol for DeviceNet
FALSE
Supporting protocol for Modbus
FALSE
Suitable for safety functions
FALSE
Number of digital outputs
8
Supporting protocol for Data-Highway
FALSE
Supply voltage DC
24 Volt
Rack-assembly possible
FALSE
Supporting protocol for LON
FALSE
Supporting protocol for other bus systems
FALSE
Supporting protocol for SUCONET
FALSE
Wall mounting/direct mounting
FALSE
