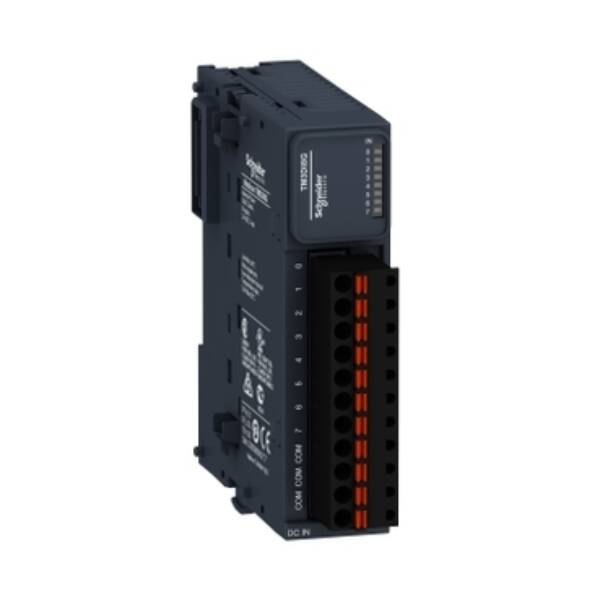

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete input module provides 8 inputs with sink or source (positive/negative) logic. It is an input module with an input voltage of 24V DC and a current consumption of 24mA/5mA at 5V DC via bus connector. It can be used to create configurations with up to 8 inputs There is an insulation between input and internal logic at 500V AC and non-insulation between inputs. It is furnished with removable spring terminal for electrical connection with 5.08mm pitch adjustment for inputs. It is an IP20 rated product. Its dimensions are 27.4mm (Width) x 84.6mm (Depth) x 90mm (Height). It weighs 0.085kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

Brand

Schneider Electric

Range

Modicon TM3

Part No

TM3DI8G

Weight (kg)

0.23 kg

Type

Modicon TM3

Input current at signal 1

7

Type of electric connection

Spring clamp connection

Voltage type of supply voltage

DC

Short-circuit protection, outputs available

FALSE

SIL according to IEC 61508

None

Digital inputs configurable

FALSE

Type of digital output

None

Digital outputs configurable

FALSE

Appendant operation agent (Ex ia)

FALSE

Performance level acc. EN ISO 13849-1

None

Permitted voltage at input

19.2…28.8 V

Type of voltage (input voltage)

AC/DC

Time delay at signal exchange

4 ms

Height

90

Appendant operation agent (Ex ib)

FALSE

Category according to EN 954-1

1

Width

27.4

Redundancy

FALSE

Suitable for safety functions

FALSE

Number of digital inputs

8

Explosion safety category for dust

None

Supply voltage DC

24 V

Depth

84.6

Explosion safety category for gas

None
