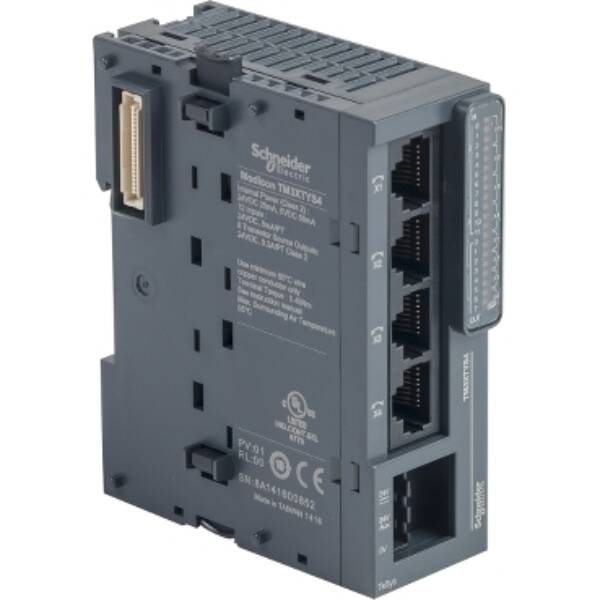

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The parallel interface module provides 12 input channels, 8 transistor output channels. It is an interface module with a rated supply voltage of 24V DC, a current consumption of 1200A and an output voltage of 24V DC. There is an insulation between the RJ45 connectors and internal logic at 500V AC and non-insulated between RJ45 connectors. It is furnished with four RJ45 connector for connecting the motor starters and removable screw terminal for electrical connection. It is an IP20 rated product. Its dimensions are 30mm (Width) x 85mm (Depth) x 90mm (Height). It weighs 0.115kg. This product is certified by CE, CULus and C-Tick. This module is compatible with Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

Brand

Schneider Electric

Range

Modicon TM3

Part No

TM3XTYS4

Weight (kg)

0.22 kg

Type

Modicon TM3

Single-axis positioning possible

FALSE

Single-axis controller possible

FALSE

Suitable for multi-axis positioning

FALSE

SIL according to IEC 61508

None

Suitable for counting

FALSE

Suitable for weighting

FALSE

Suitable for temperature control

FALSE

Appendant operation agent (Ex ia)

FALSE

Performance level acc. EN ISO 13849-1

None

Suitable for NC

FALSE

Suitable for SSI

FALSE

Height

90

Suitable for welding control

FALSE

Appendant operation agent (Ex ib)

FALSE

Suitable for pressure control

FALSE

Category according to EN 954-1

1

Width

30

Suitable for incremental data detection

FALSE

Suitable for safety functions

FALSE

Function electronic positioning available

FALSE

Redundancy

FALSE

Suitable for CNC

FALSE

Explosion safety category for dust

None

Suitable for detection absolute value

FALSE

Depth

85

Explosion safety category for gas

None

Flux controller possible

FALSE

Suitable for flux measurement

FALSE

Suitable for flying saw

FALSE

Suitable for multi-axis control

FALSE

Suitable for path controller

FALSE

Suitable for cam controller

FALSE
