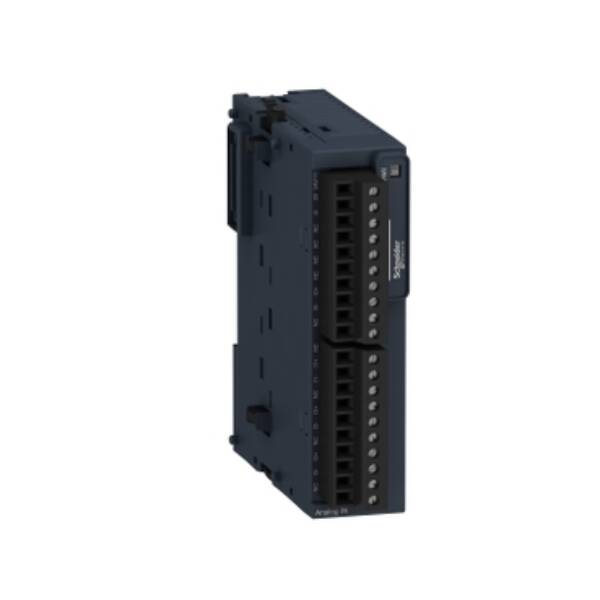

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue input module provides 4 inputs with 12bit + sign and 11bit resolution. It is an input module with a rated supply voltage of 24V DC and a current consumption of 35mA at 5V DC via bus connector no load, 45mA at 5V DC via bus connector full load, 30mA at 24V DC via external supply. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC. It is furnished with removable screw terminal for electrical connection with 3.18mm pitch adjustment for inputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.11kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

Brand

Schneider Electric

Range

Modicon TM3

Part No

TM3AI4

Weight (kg)

0.21 kg

Type

Modicon TM3

Input, thermocouple

FALSE

Input signal, configurable

FALSE

Type of electric connection

Screw connection

Analogue inputs configurable

FALSE

Analogue outputs configurable

FALSE

SIL according to IEC 61508

None

Input, resistor

FALSE

Input, resistance thermometer

FALSE

Input, current

TRUE

Input voltage

TRUE

Performance level acc. EN ISO 13849-1

None

Appendant operation agent (Ex ia)

FALSE

Height

90

Appendant operation agent (Ex ib)

FALSE

Category according to EN 954-1

1

Width

23.6

Output voltage

FALSE

Output signal configurable

FALSE

Resolution of the analogue outputs

12

Suitable for safety functions

FALSE

Output, current

FALSE

Resolution of the analogue inputs

12

Explosion safety category for dust

None

Number of analogue inputs

4

Depth

70

Explosion safety category for gas

None
