TM3DQ32UK
TM3DQ32UK

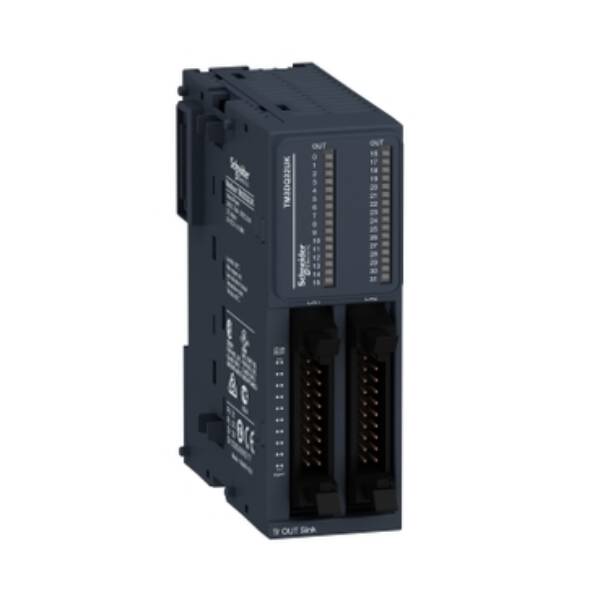

Modicon TM3 - 32 outputs transistor NPN (HE10) - Schneider Electric - TM3DQ32UK
Automation
List Price £258.49
+VAT
Our Price £206.79
+VAT
SAVE 21% OFF List Price
Add to basket
Estimated delivery between 7-10 working days
Product description
Specifications
Downloads
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete output module provides 32 transistor outputs with sink (negative)logic. It is an output module with an output voltage of 24V DC and a current consumption of 40mA at 24V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and internal logic at 500V AC, non-insulated between outputs. It is furnished with HE-10 connector outputs for electrical connection. It is an IP20 rated product. Its dimensions are 33.5mm (Width) x 81.3mm (Depth) x 90mm (Height). It weighs 0.115kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Brand
Schneider Electric
Range
Modicon TM3
Part No
TM3DQ32UK
Weight (kg)
0.22 kg
Type
Modicon TM3
Datasheet for TM3DQ32UK - Modicon TM3 - 32 outputs transistor NPN (HE10) - Schneider Electric - TM3DQ32UK
Download
