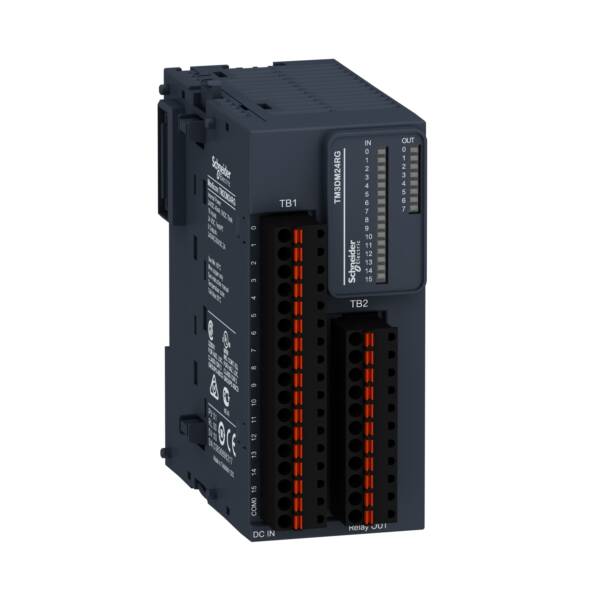

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete I/O module provides 16 input channels, 8 relay output channels with sink or source (positive/negative) discrete logic. It is an I/O module with a relay output voltage of 24V DC, 240V AC, a current consumption of 65mA, 5mA at 5V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an Insulation between input/output and internal logic at 500V AC, input and output groups at 1500V AC, open contact at 750V AC and non-insulated between inputs/outputs. It is furnished with removable spring terminal for electrical connection with 3.81mm pitch adjustment for inputs and outputs. It is an IP20 rated product. Its dimensions are 42.9mm (Width) x 84.6mm (Depth) x 90mm (Height). It weighs 0.155kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

Brand

Schneider Electric

Range

Modicon TM3

Part No

TM3DM24RG

Weight (kg)

0.27 kg

Type

Modicon TM3

Input current at signal 1

7

Output, current

2

Type of electric connection

Spring clamp connection

Voltage type of supply voltage

AC

Short-circuit protection, outputs available

FALSE

SIL according to IEC 61508

None

Digital inputs configurable

FALSE

Type of digital output

Relay

Digital outputs configurable

FALSE

Performance level acc. EN ISO 13849-1

None

Appendant operation agent (Ex ia)

FALSE

Permitted voltage at output

30…264 V

Permitted voltage at input

19.2…28.8 V

Type of voltage (input voltage)

AC/DC

Time delay at signal exchange

4…10 ms

Height

90

Appendant operation agent (Ex ib)

FALSE

Type of output voltage

AC/DC

Category according to EN 954-1

1

Width

42.9

Suitable for safety functions

FALSE

Redundancy

FALSE

Number of digital outputs

8

Number of digital inputs

16

Explosion safety category for dust

None

Supply voltage DC

24 V

Depth

84.6

Explosion safety category for gas

None
