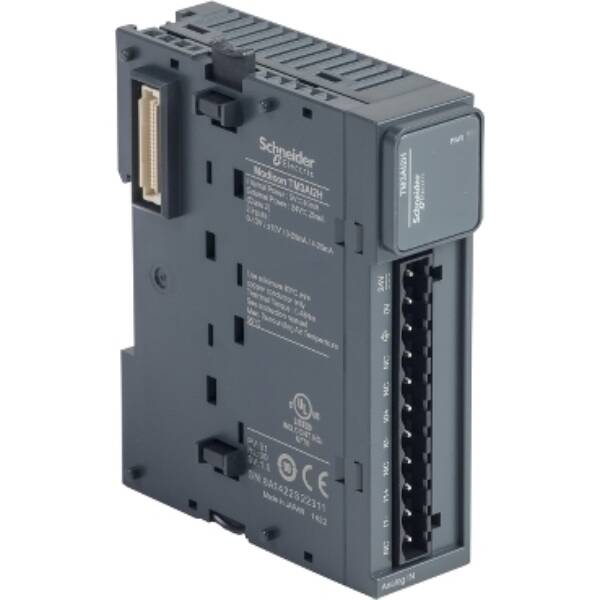

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue input module provides 2 inputs with 15bit + sign and 16bit resolution. It is an input module with a rated supply voltage of 24V DC and a current consumption of 30mA at 5V DC via bus connector no load, 40mA at 5V DC via bus connector full load, 25mA at 24V DC via external supply. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC. It is furnished with removable screw terminal for electrical connection with 5.08mm pitch adjustment for inputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.115kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

Brand

Schneider Electric

Range

Modicon TM3

Part No

TM3AI2H

Weight (kg)

0.22 kg

Type

Modicon TM3

Supporting protocol for SERCOS

FALSE

Analogue inputs configurable

FALSE

Analogue outputs configurable

FALSE

SIL according to IEC 61508

None

System accessory

FALSE

Performance level according to EN ISO 13849-1

None

Certified for UL hazardous location division 2

FALSE

Radio standard GPRS

FALSE

Fieldbus connection over separate bus coupler possible

FALSE

Height

90

Supporting protocol for INTERBUS-Safety

FALSE

Certified for UL hazardous location class I

FALSE

Certified for UL hazardous location class III

FALSE

Certified for UL hazardous location division 1

FALSE

Certified for UL hazardous location class II

FALSE

Width

23.6

Supporting protocol for EtherCAT

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Explosion safety category for dust

None

Radio standard GSM

FALSE

Radio standard UMTS

FALSE

Depth

70

Explosion safety category for gas

None

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

Certified for UL hazardous location group C (ethylene)

FALSE

Certified for UL hazardous location group A (acetylene)

FALSE

Certified for UL hazardous location group B (hydrogen)

FALSE

Certified for UL hazardous location group F (carbonaceous dusts)

FALSE

Certified for UL hazardous location group G (non-conductive dusts)

FALSE

Certified for UL hazardous location group D (propane)

FALSE

Certified for UL hazardous location group E (metal dusts)

FALSE

Input, thermocouple

FALSE

Input signal, configurable

FALSE

Supporting protocol for SafetyBUS p

FALSE

Type of electric connection

Screw connection

Voltage type (supply voltage)

DC

Input, resistor

FALSE

Supporting protocol for PROFINET CBA

FALSE

Input, resistance thermometer

FALSE

Supporting protocol for PROFINET IO

FALSE

Input, current

TRUE

Input, voltage

TRUE

Supporting protocol for PROFIsafe

FALSE

Radio standard Bluetooth

FALSE

Supporting protocol for ASI

FALSE

Radio standard WLAN 802.11

FALSE

Supporting protocol for PROFIBUS

FALSE

Appendant operation agent (Ex ia)

FALSE

Supporting protocol for TCP/IP

FALSE

Front built-in possible

FALSE

Supporting protocol for KNX

FALSE

Supporting protocol for CAN

FALSE

Degree of protection (IP)

IP20

Appendant operation agent (Ex ib)

FALSE

IO link master

FALSE

Supporting protocol for INTERBUS

FALSE

Supporting protocol for DeviceNet

FALSE

Rail mounting possible

TRUE

Output, voltage

FALSE

Output signal configurable

FALSE

Suitable for safety functions

FALSE

Supporting protocol for Modbus

FALSE

Output, current

FALSE

Resolution of the analogue inputs

16

Supporting protocol for Data-Highway

FALSE

Supply voltage DC

24 Volt

Number of analogue inputs

2

Rack-assembly possible

FALSE

Power consumption

1.1

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

FALSE

Degree of protection (NEMA)

2
