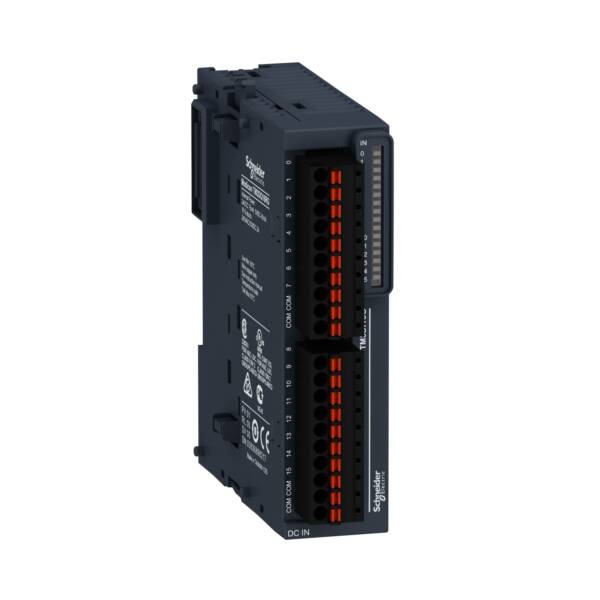

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete output module provides 16 relay outputs with positive or negative logic. It is an output module with an output voltage of 240V AC, 30V DC and a current consumption of 75mA at 24V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and internal logic at 2300V AC, outputs at 750V AC, output groups at 1500V AC. It is furnished with removable spring terminal for electrical connection with pitch 3.81mm adjustment for outputs. It offers mechanical durability of 20 million cycles. It is an IP20 rated product. Its dimensions are 27.4mm (Width) x 84.6mm (Depth) x 90mm (Height). It weighs 0.130kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

Brand

Schneider Electric

Range

Modicon TM3

Part No

TM3DQ16RG

Weight (kg)

0.25 kg

Type

Modicon TM3

Type of electric connection

Spring clamp connection

Output, current

2

Voltage type of supply voltage

DC

Short-circuit protection, outputs available

FALSE

SIL according to IEC 61508

None

Type of digital output

Relay

Digital inputs configurable

FALSE

Digital outputs configurable

FALSE

Appendant operation agent (Ex ia)

FALSE

Permitted voltage at output

30…264 V

Performance level acc. EN ISO 13849-1

None

Height

90

Time delay at signal exchange

10 ms

Appendant operation agent (Ex ib)

FALSE

Category according to EN 954-1

1

Type of output voltage

AC/DC

Width

27.4

Redundancy

FALSE

Number of digital outputs

16

Suitable for safety functions

FALSE

Explosion safety category for dust

None

Supply voltage DC

24 V

Depth

84.6

Explosion safety category for gas

None
