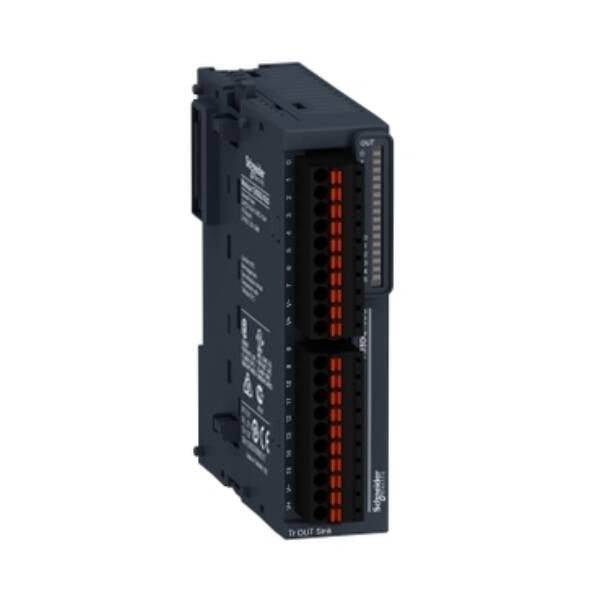

"This product is part of Modicon TM3, a range of expansion I/O modules for Modicon plcs." "This discrete output module provides 16 transistor outputs with source (positive) logic." "It is an output module with an output voltage of 24VDC and a current consumption of 20mA at 24VDC via bus connector." "This product is capable of controlling variable speed drives or any device equipped with a current or voltage input." "There is an insulation between output and internal logic AC, non-insulated between outputs. It works via a 24VDC external power supply." "It is furnished with removable screw terminal for electrical connection with pitch 3.81mm adjustment for outputs. " "It is an IP20-rated product. Its dimensions are 27.4mm wide, 84.6mm deep and 90mm high. It weighs 0.105kg." "It is designed to operate or control a device connected to an output module and decisions sent by the PLC." "This product is certified by CULus, CE, UKCA, RCM, EAC, and cULus HazLoc." "This module is compatible with Modicon M262/M241/M251/M221 logic controllers and is configurable with EcoStruxure machine expert software." "It is delivered in 1 package (PCE type)." "It is mounted on a symmetrical DIN rail. Or with a specific kit for plate or panel mounting." "The specially developed Modicon TM3 I/O system enables flexible and customizable expansion of the I/O terminals in all the controllers." "From design and development to commissioning and maintenance, EcoStruxure Machine Expert is a complete machine-building solution."

Brand

Schneider Electric

Range

Modicon TM3

Part No

TM3DQ16UG

Weight (kg)

0.20 kg

Type

Modicon TM3

Supporting protocol for SERCOS

FALSE

SIL according to IEC 61508

None

With optical interface

FALSE

Digital inputs configurable

FALSE

System accessory

FALSE

Digital outputs configurable

FALSE

Performance level according to EN ISO 13849-1

None

Permitted voltage at output

19.2…28.8 Volt

Certified for UL hazardous location division 2

FALSE

Radio standard GPRS

FALSE

Fieldbus connection over separate bus coupler possible

FALSE

Height

90

Time delay at signal change

0.45 Millisecond

Supporting protocol for INTERBUS-Safety

FALSE

Certified for UL hazardous location class I

FALSE

Certified for UL hazardous location class III

FALSE

Certified for UL hazardous location division 1

FALSE

Certified for UL hazardous location class II

FALSE

Width

21.4

Supporting protocol for EtherCAT

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Explosion safety category for dust

None

Radio standard GSM

FALSE

Radio standard UMTS

FALSE

Depth

81.3

Explosion safety category for gas

None

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

Certified for UL hazardous location group C (ethylene)

FALSE

Certified for UL hazardous location group A (acetylene)

FALSE

Certified for UL hazardous location group B (hydrogen)

FALSE

Certified for UL hazardous location group F (carbonaceous dusts)

FALSE

Certified for UL hazardous location group G (non-conductive dusts)

FALSE

Certified for UL hazardous location group D (propane)

FALSE

Certified for UL hazardous location group E (metal dusts)

FALSE

Type of electric connection

Spring clamp connection

Supporting protocol for SafetyBUS p

FALSE

Output current

0.5

Short-circuit protection, outputs available

TRUE

Voltage type (supply voltage)

DC

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Type of digital output

Transistor

Supporting protocol for PROFIsafe

FALSE

Radio standard Bluetooth

FALSE

Supporting protocol for ASI

FALSE

Appendant operation agent (Ex ia)

FALSE

Radio standard WLAN 802.11

FALSE

Supporting protocol for PROFIBUS

FALSE

Front built-in possible

FALSE

Supporting protocol for TCP/IP

FALSE

Supporting protocol for KNX

FALSE

Degree of protection (IP)

IP20

Appendant operation agent (Ex ib)

FALSE

Supporting protocol for CAN

FALSE

Supporting protocol for INTERBUS

FALSE

Type of output voltage

AC/DC

IO link master

FALSE

Supporting protocol for DeviceNet

FALSE

Rail mounting possible

TRUE

Suitable for safety functions

FALSE

Supporting protocol for Modbus

FALSE

Number of digital outputs

16

Supporting protocol for Data-Highway

FALSE

Supply voltage DC

24 Volt

Rack-assembly possible

FALSE

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

FALSE
