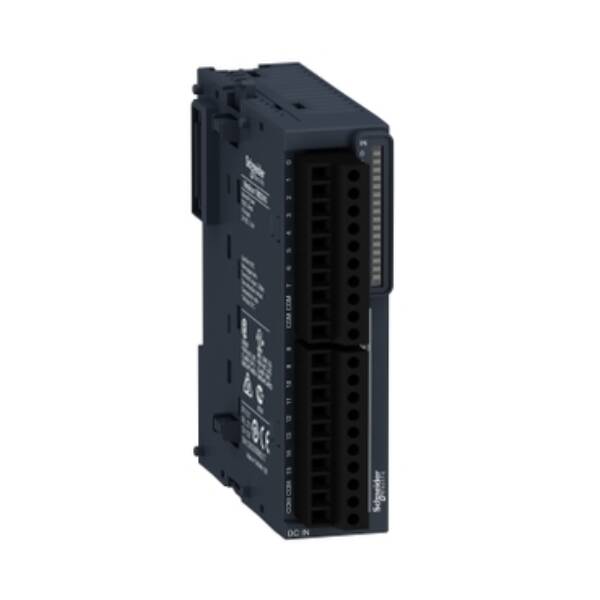

Modicon TM3 - 16 inputs (screw) 24Vdc - Schneider Electric - TM3DI16
Modicon TM3 - 16 inputs (screw) 24Vdc - Schneider Electric - TM3DI16

TM3DI16

Modicon TM3 - 16 inputs (screw) 24Vdc - Schneider Electric - TM3DI16

Automation

This digital input module is part of the Modicon TM3 range of I/O expansion modules for Modicon controllers. It consists in 16 logic inputs and it is supplied with 24V dc. It is equipped with one removable screw terminal block and can be mounted on a symmetrical DIN rail 35 mm. This digital I/O module complement the embedded I/O on Modicon M221, M221 Book, M241 and M251 logic controllers. There is an insulation between output and supply at 1500V AC, output and internal logic at 500V AC. It is furnished with removable spring terminal for electrical connection with pitch 3.81mm adjustment for inputs. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.105kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
List Price £149.61 +VAT

Our Price £119.69 +VAT

SAVE 20% OFF List Price
Fast Track Delivery Product

Specifications

Brand
Schneider Electric
Type
Modicon TM3
Range
Modicon TM3
Part No
TM3DI16
Weight (kg)
0.21 kg

Datasheet for TM3DI16 - Modicon TM3 - 16 inputs (screw) 24Vdc - Schneider Electric - TM3DI16
