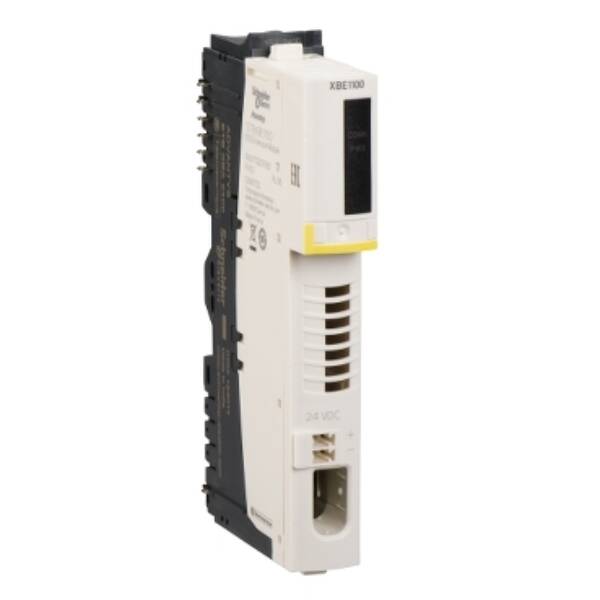

Modicon STB - EOS internal bus extension kit - Schneider Electric - STBXBE1100K

Modicon STB - EOS internal bus extension kit - Schneider Electric - STBXBE1100K

STBXBE1100K

Modicon STB - EOS internal bus extension kit - Schneider Electric - STBXBE1100K

Automation

~~List Price £82.87 +VAT~~

Our Price £66.30 +VAT

SAVE 20% OFF List Price

Estimated delivery between 7-10 working days

This bus extension kit is part of the Modicon STB range, an offer of IP20 modular distributed I/Os on multiple networks and fieldbus. This EOS internal bus extension kit is furnished with FireWire for interface. It is an IP20 rated product. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines. This product is certified by CE, FM Class 1 Division 2, CSA, UL. It is compatible with standard STB modules. The kit includes STBXTS1120, 2-terminal screw type connector, STBXTS2120, 2-terminal spring clamp connector, STBXBA2400 size 2 base and STBXBE1100 module. Advantys distributed I/O solutions are simple, open and flexible, meeting needs in every stage of the product life cycle. For distributed connection to sensors and actuators from a PLC with prefabricated cables.

Brand: Schneider Electric
Range: Advantys STB
Part No: STBXBE1100K
Weight (kg): 0.12 kg
Type: Advantys STB
Bus diagnosis possible: TRUE
Supporting protocol for SERCOS: FALSE
Number of HW-interfaces other: 1
SIL according to IEC 61508: None
With optical interface: FALSE
System accessory: TRUE
With potential separation: TRUE
Performance level acc. EN ISO 13849-1: None
Radio standard GPRS: FALSE
Fieldbus connection over separate bus coupler possible: TRUE
Height: 120
Supporting protocol for INTERBUS-Safety: FALSE
Category according to EN 954-1: 1
Width: 18.4
With power supply module: FALSE
Supporting protocol for AS-Interface Safety at Work: FALSE
Radio standard GSM: FALSE
Explosion safety category for dust: None
Radio standard UMTS: FALSE
Depth: 70
Explosion safety category for gas: None
Supporting protocol for DeviceNet Safety: FALSE
Supporting protocol for EtherNet/IP: FALSE
Supporting protocol for Foundation Fieldbus: FALSE
Supporting protocol for SafetyBUS p: FALSE
Type of electric connection: Screw-/spring clamp connection
Voltage type of supply voltage: AC/DC
Supporting protocol for PROFINET CBA: FALSE
Supporting protocol for PROFINET IO: FALSE
Supporting protocol for PROFIsafe: FALSE
Radio standard Bluetooth: FALSE
Supporting protocol for ASI: FALSE
Radio standard WLAN 802.11: FALSE
Supporting protocol for PROFIBUS: FALSE
Appendant operation agent (Ex ia): FALSE
Front build in possible: FALSE
Supporting protocol for TCP/IP: FALSE
Supporting protocol for KNX: FALSE
Degree of protection (IP): IP20
Appendant operation agent (Ex ib): FALSE
Supporting protocol for CAN: FALSE
Supporting protocol for INTERBUS: FALSE
Rail mounting possible: TRUE
Supporting protocol for DeviceNet: FALSE
Suitable as segment module: TRUE
Supporting protocol for MODBUS: FALSE
Suitable for safety functions: FALSE
Supporting protocol for Data-Highway: FALSE
Supply voltage DC: 24 V
Rack-assembly possible: TRUE
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: FALSE
Supporting protocol for SUCONET: FALSE
Wall mounting/direct mounting: FALSE
Remote module: FALSE

Datasheet for STBXBE1100K - Modicon STB - EOS internal bus extension kit - Schneider Electric - STBXBE1100K

Download
