TM251MDESE

Modicon M251 dPAC - Schneider Electric - TM251MDESE

Automation

~~List Price £320.57 +VAT~~

Our Price £256.46 +VAT

SAVE 20% OFF List Price

Estimated delivery between 7-10 working days

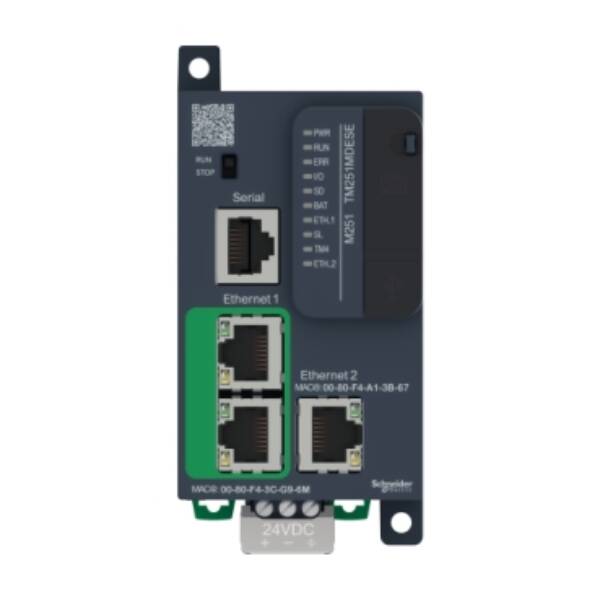

The Modicon M251 dPAC is part of the EcoStructure Automation Expert hardware controller range. It is an optimised dPAC controller that supports Modicon TM3 I/O catalog. The controller carries up to 488 discrete I/O channels, 114 analog I/O channels and 14 (7 local + 7 remote) Modicon TM3 expansion modules. It is a cost-optimized, low-footprint distributed controller based on the machine-specialized Modicon M251 PAC platform. It includes a 1GB/s Ethernet port, a dual port Ethernet field bus and supports Modbus/TCP, OPC UA and auto discovery. The controler is compatible with most Modicon TM3 I/O. It weighs 0.85kg (1.9lb). EcoStruxure Automation Expert is a new category of software defined automation, enabling next generation integrated architectures and Industry 4.0 solutions. It complies with IEC/EN 61131-2 (Edition 2 2007), UL508 (UL61010-2-201), ANSI/ISA 12.12.01-2007, CSA C22.2 No. 213, No. 142, E61131-2 and IACS E10 standards.

Brand: Schneider Electric
Range: Logic Controller - Modicon M251
Part No: TM251MDESE
Weight (kg): 0.37 kg
Type: Logic Controller - Modicon M251
Supporting protocol for SERCOS: FALSE
Number of HW-interfaces USB: 1
SIL according to IEC 61508: None
With optical interface: FALSE
Additional program memory possible: TRUE
System accessory: FALSE
Performance level acc. EN ISO 13849-1: None
Radio standard GPRS: FALSE
Height: 90
Supporting protocol for INTERBUS-Safety: FALSE
Category according to EN 954-1: 1
Width: 54
Redundancy: FALSE
Supporting protocol for AS-Interface Safety at Work: FALSE
Radio standard GSM: FALSE
Explosion safety category for dust: None
Radio standard UMTS: FALSE
Depth: 90
Explosion safety category for gas: None
Supporting protocol for DeviceNet Safety: FALSE
Supporting protocol for EtherNet/IP: FALSE
Supporting protocol for Foundation Fieldbus: FALSE
With display: FALSE
Processing time (1K, binary operation): 3
Model: Modular
Supporting protocol for SafetyBUS p: FALSE
Voltage type of supply voltage: DC
Type of memory: RAM
Supporting protocol for PROFINET CBA: FALSE
Supporting protocol for PROFINET IO: FALSE
Supporting protocol for PROFIsafe: FALSE
Memory size: 64000
Supporting protocol for ASI: FALSE
Radio standard Bluetooth: FALSE
Appendant operation agent (Ex ia): FALSE
Radio standard WLAN 802.11: FALSE
Supporting protocol for PROFIBUS: FALSE
Supporting protocol for TCP/IP: FALSE
Front build in possible: FALSE
Supporting protocol for KNX: FALSE
Supporting protocol for CAN: FALSE
Appendant operation agent (Ex ib): FALSE
Supporting protocol for INTERBUS: FALSE
IO link master: FALSE
Supporting protocol for DeviceNet: FALSE
Rail mounting possible: TRUE
Supporting protocol for MODBUS: FALSE
Suitable for safety functions: FALSE
Supporting protocol for Data-Highway: FALSE
Supply voltage DC: 24 V
Rack-assembly possible: FALSE
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: FALSE
Supporting protocol for SUCONET: FALSE
Wall mounting/direct mounting: TRUE
Number of HW-interfaces RS-485: 1
Number of HW-interfaces industrial Ethernet: 2
Number of HW-interfaces RS-232: 1
