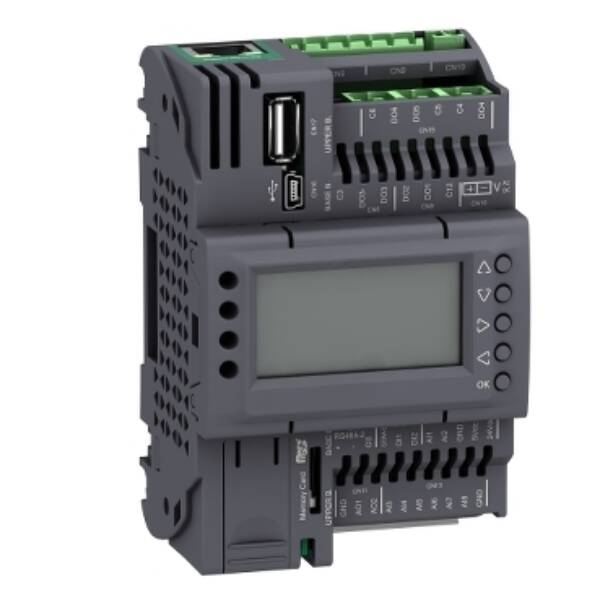

"This logic controller is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications." "This controller figures 2 digital inputs, 8 analog inputs, 6 digital outputs, 2 analog outputs, and a display." "It has an Ethernet port, a CAN bus port, 2x RS485 ports, a USB-A, a USB-B, an SD card slot, a Communication module port." "It is a programmable logic controller for HVAC and Pumping applications." "DIs are high-speed counters, AIs are NTC, PT1000, PTC, 0-20mA, 4-20mA, 0-5V, 0-10V, hOhm, daOhm, and DIs." "DOs are SPDT relay 3A, SPST 3A (same or independent common), SSR 0.5A, AOs are 0-10V, 4-20mA, PWM (2kHz, 24Vdc)." "It measures 72mm wide, 60.5mm deep, 110mm high, and weighs 0.225kg." 0 "This controller is designed for HVAC solutions." "It is certified by CE, RCM, EAC, CSA and CURus." "It is compatible with screw terminal blocks, remote display, and communication modules." "It is sold in a 1-piece package." "It is designed for 35mm rail mounting." "Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines." "Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications."

Brand

Schneider Electric

Range

Modicon M171/M172/M173

Part No

TM172PDG18S

Weight (kg)

0.28 kg

Type

Modicon M171/M172

Supporting protocol for IEC 60870

FALSE

Supporting protocol for DNP3

FALSE

Supporting protocol for SERCOS

FALSE

Number of HW-interfaces other

1

Number of HW-interfaces USB

2

SIL according to IEC 61508

None

Number of relay outputs

4

With optical interface

FALSE

System accessory

FALSE

Additional program memory possible

FALSE

Performance level according to EN ISO 13849-1

None

Certified for UL hazardous location division 2

FALSE

Radio standard GPRS

FALSE

Height

110

Supporting protocol for INTERBUS-Safety

FALSE

Certified for UL hazardous location class I

FALSE

Certified for UL hazardous location class III

FALSE

Certified for UL hazardous location division 1

FALSE

Certified for UL hazardous location class II

FALSE

Width

72

Supporting protocol for EtherCAT

FALSE

Redundancy

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Radio standard GSM

FALSE

Explosion safety category for dust

None

Radio standard UMTS

FALSE

Depth

60.5

Explosion safety category for gas

None

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

Certified for UL hazardous location group C (ethylene)

FALSE

Certified for UL hazardous location group A (acetylene)

FALSE

Certified for UL hazardous location group B (hydrogen)

FALSE

Certified for UL hazardous location group F (carbonaceous dusts)

FALSE

Certified for UL hazardous location group G (non-conductive dusts)

FALSE

Certified for UL hazardous location group D (propane)

FALSE

Certified for UL hazardous location group E (metal dusts)

FALSE

With display

TRUE

Processing time (1K, binary operation)

100

Supporting protocol for SafetyBUS p

FALSE

Model

Compact

Voltage type (supply voltage)

AC/DC

Type of memory

RAM

Supporting protocol for PROFINET CBA

FALSE

Long-Term Evolution (LTE)

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Memory size

512

Supporting protocol for ASI

FALSE

Radio standard Bluetooth

FALSE

Radio standard WLAN 802.11

FALSE

Supporting protocol for PROFIBUS

FALSE

Appendant operation agent (Ex ia)

FALSE

Supply voltage AC 50 Hz

24 Volt

Supporting protocol for TCP/IP

TRUE

Front built-in possible

FALSE

Supply voltage AC 60 Hz

24 Volt

Supporting protocol for KNX

FALSE

Appendant operation agent (Ex ib)

FALSE

Supporting protocol for CAN

TRUE

IO link master

FALSE

Supporting protocol for INTERBUS

FALSE

Supporting protocol for IEC 61850 Ethernet

FALSE

Rail mounting possible

TRUE

Supporting protocol for DeviceNet

FALSE

Number of digital outputs

6

Suitable for safety functions

FALSE

Supporting protocol for Modbus

TRUE

Number of digital inputs

2

Supporting protocol for Data-Highway

FALSE

Supply voltage DC

20…38 Volt

Number of analogue outputs

2

Rack-assembly possible

FALSE

Number of analogue inputs

8

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

TRUE

Number of HW-interfaces RS-485

2

Number of HW-interfaces industrial Ethernet

1
