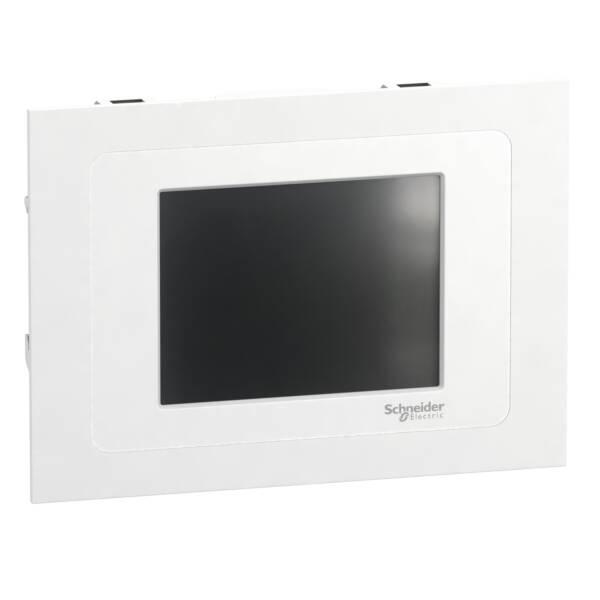

"This remote display is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications." "This color touchscreen display is an accessory to the M172 Optimized and Performance controllers." "It is a remote color touch screen display." "It is designed for remote control of plc, either indoor or outdoor uses." "It figures one Communication port fRS485 Modbus serial line." "Its screen size is 3.5inches, with a 320x240pixels resolution, and its Ip level is IP65 on front face." "It measures 134mm wide, 35mm deep, 196mm high, and weighs 0,175kg." "It is remote display for Modicon M172 logic controllers." "It is certified by cURus, RCM, CE, CSA, and EAC." "It is compatible with M172 Optimized and M172 Performance logic controllers." "It is sold in a 1-piece package." "It is designed for flush mounting." "Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines." "Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications."

Brand

Schneider Electric

Range

Modicon M171/M172/M173

Part No

TM172DCLFW

Weight (kg)

0.29 kg

Type

Modicon M171/M172

With message indication

FALSE

Supporting protocol for SERCOS

FALSE

With numeric keyboard

FALSE

With alpha numeric keyboard

FALSE

Radio standard GPRS

FALSE

With message system (incl. buffer and confirmation)

FALSE

Process value representation (output) possible

FALSE

Supporting protocol for INTERBUS-Safety

FALSE

Type of display

Other

With printer output

FALSE

Process default value (input) possible

FALSE

With recipes

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Radio standard GSM

FALSE

Degree of protection (IP), front side

Other

Radio standard UMTS

FALSE

Additional software components, loadable

FALSE

Touch technology

Other

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

With SW interfaces

FALSE

Operation temperature

-30…50 °C

Built-in depth

35

Supporting protocol for SafetyBUS p

FALSE

Voltage type of supply voltage

AC/DC

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Supporting protocol for ASI

FALSE

Radio standard Bluetooth

FALSE

Supporting protocol for PROFIBUS

FALSE

Radio standard WLAN 802.11

FALSE

Supply voltage AC 50 Hz

24 V

Supply voltage AC 60 Hz

24 V

Supporting protocol for TCP/IP

FALSE

Number of pixels, horizontal

320

Supporting protocol for KNX

FALSE

With colour display

TRUE

Supporting protocol for CAN

FALSE

Number of colours of the display

12

Supporting protocol for INTERBUS

FALSE

IO link master

FALSE

Rail mounting possible

FALSE

Supporting protocol for DeviceNet

FALSE

Supporting protocol for MODBUS

FALSE

Suitable for safety functions

FALSE

Width of the front

134

Height of the front

96

Supporting protocol for Data-Highway

FALSE

Supply voltage DC

24 V

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

FALSE

Number of pixels, vertical

240
