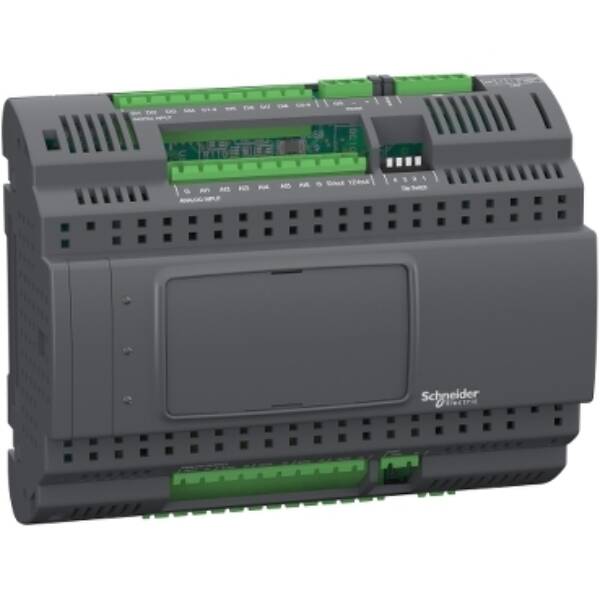

This product is part of the Modicon M171/M172 range, an offer I/O modules for HVAC solutions. This additional I/O module offers 8 discrete inputs with sink or source (positive/negative) discrete input logic. It is a module with discrete input voltage ranges from 24V AC/DC to 48V DC and analogue output voltage ranges from 0V to 15V. This module offers 3 SPST relay output, 2 SPST relay output with same common and 2 SPDT relay output with independent common discrete output. It is an IP20 rated product. Its dimensions are 140mm (width) x 61.6mm (depth) x 110mm (height). It weighs 0.19kg. The main application of this module is HVAC and pumping solution. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.

Brand

Schneider Electric

Range

Modicon M171/M172/M173

Part No

TM171EP27R

Weight (kg)

0.47 kg

Type

Modicon M171/M172

Input current at signal 1

0.5

Type of electric connection

Screw connection

Analogue input, resistor temperature

TRUE

Analogue input, thermocouple

FALSE

Voltage type (supply voltage)

AC/DC

Analogue input, resistor

FALSE

SIL according to IEC 61508

None

Type of digital output

Relay

Analogue input signal configurable

TRUE

Appendant operation agent (Ex ia)

FALSE

Performance level according to EN ISO 13849-1

None

Permitted voltage at input

0…24 Volt

Supply voltage AC 50 Hz

24 Volt

Supply voltage AC 60 Hz

24 Volt

Type of voltage (input voltage)

DC

Height

110

Time delay at signal change

200 Millisecond

Appendant operation agent (Ex ib)

FALSE

Type of output voltage

AC

Width

140

Analogue input, current

TRUE

Analogue output, voltage

TRUE

Resolution of the analogue outputs

13

Analogue output signal configurable

TRUE

Number of digital outputs

7

Suitable for safety functions

FALSE

Number of digital inputs

9

Resolution of the analogue inputs

13

Analogue output, current

TRUE

Supply voltage DC

24…48 Volt

Explosion safety category for dust

None

Number of analogue outputs

5

Output current at digital output

8

Number of analogue inputs

6

Output voltage at digital output

240 Volt

Depth

61.6

Explosion safety category for gas

None

Analogue input, voltage

TRUE

Short-circuit protection, digital outputs available

FALSE

Digital in-/outputs, configurable

FALSE
