TM171ACB4OI2M

Modicon M171 Optimized LV Connector 2m cable - Schneider Electric - TM171ACB4OI2M

Automation

~~List Price £15.14 +VAT~~

Our Price £12.11 +VAT

SAVE 21% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

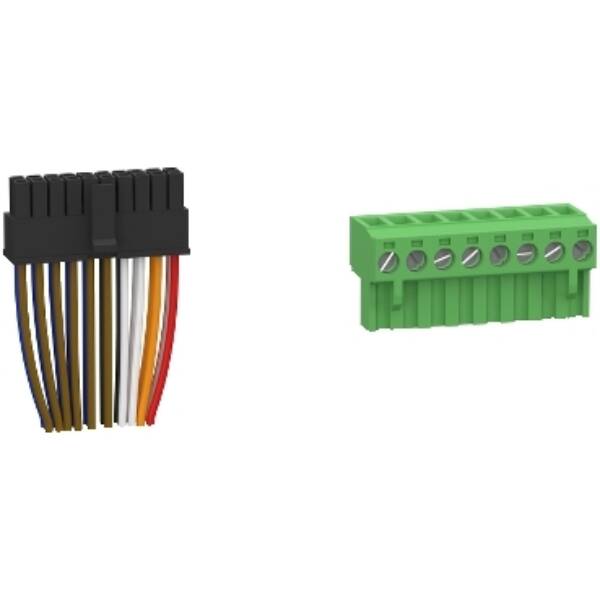

"This connector is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications." "This Low voltage connector is an accessory to the M171 optimized controllers." "It is a Screw terminal block and a cordset equipped with a 20-pin connector at one end." "It allows to connect the digital outputs to the controller." "The connected outputs are 0-10V." "The cable measures 1m." "This connection accessory is dedicated to M171 Optimized controllers." "It is sold in a 5-piece package." "Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines." "Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications."

Brand: Schneider Electric
Range: Modicon M171/M172/M173
Part No: TM171ACB4OI2M
Weight (kg): 0.24 kg
Type: Modicon M171/M172
Material outer sheath: Other
Stranding: Other
Permitted cable outer temperature during assembling/handling: 10…50 °C
Armouring: FALSE
Outer diameter approx.: 10
Diameter conductor: 1
Permitted cable outer temperature after assembling without vibration: 10…50 °C
Screen over stranding element: None
Number of stranding elements: 1
Halogen free (acc. EN 60754-1/2): FALSE
Underground installation: FALSE
Low smoke (acc. EN 61034-2): FALSE
Nominal cross section conductor: 0.8
Core insulation material: Other
Halogen free (acc. IEC 60754-2): FALSE
Oil resistant (acc. EN 60811-404): FALSE
AWG-size: 10
Protective sheath: Other
Specification material outer sheath: Other
Specification core insulation: Other
Min. permitted bending radius, stationary application/permanent installation: 15
Min. permitted bending radius, moving application/free movement: 15
Min. permitted bending radius, moving application with forced guidance: 15
Colour outer sheath: Other
Stranding element: No
Category: 5
Number of cores: 10
Core identification: Colour
Insulation integrity in accordance with IEC 60331: FALSE
UV resistant: FALSE
Conductor category: Class 5 = flexible
Low smoke (acc. IEC 61034-2): FALSE
Oil resistant (acc. IEC 60811-404): FALSE
Radial water blocking cable: FALSE
Longitudinal water blocking cable: FALSE
Conductor surface: Other
