TM171OFM22R

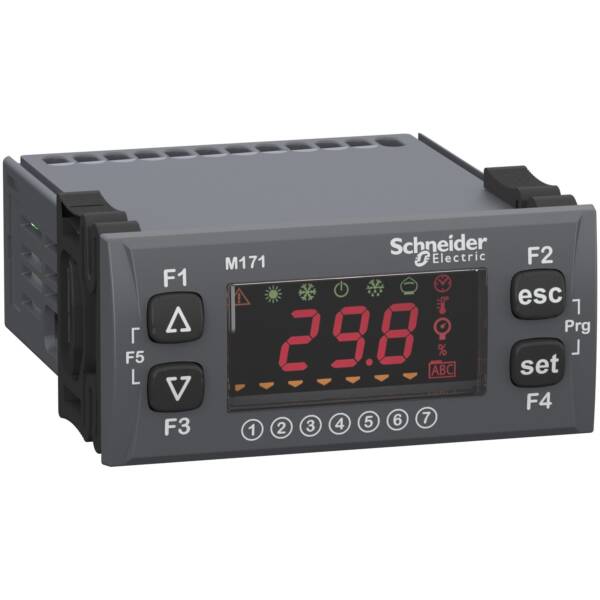

Modicon M171 Optimized Flush mounting 22 I/Os, Modbus - Schneider Electric - TM171OFM22R

Automation

~~List Price £225.32 +VAT~~

Our Price £180.26 +VAT

SAVE 20% OFF List Price

Estimated delivery between 7-10 working days

This product is part of the Modicon M171/M172 range, an offer of controllers for HVAC solutions. This controller offers 2 discrete inputs with sink or source (positive/negative) discrete input logic. The rated supply voltage ranges from 100V to 240V, ±10% AC. It is an IP20 rated product. Its dimensions are 140mm (width) x 61.6mm (depth) x 110mm (height). It weighs 0.385kg. The main application of this module is HVAC and pumping solution. This product is certified by CE, CURus, CSA and EAC. It meets EN/IEC 60730 standard. It is suitable for DIN rail mount. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.

Brand: Schneider Electric
Range: Modicon M171/M172/M173
Part No: TM171OFM22R
Weight (kg): 0.18 kg
Type: Modicon M171/M172
Supporting protocol for SERCOS: FALSE
Number of HW-interfaces other: 1
SIL according to IEC 61508: None
Number of relay outputs: 5
With optical interface: FALSE
System accessory: TRUE
Additional program memory possible: FALSE
Performance level acc. EN ISO 13849-1: None
Radio standard GPRS: FALSE
Height: 32
Supporting protocol for INTERBUS-Safety: FALSE
Category according to EN 954-1: 1
Width: 74
Redundancy: FALSE
Supporting protocol for AS-Interface Safety at Work: FALSE
Radio standard GSM: FALSE
Explosion safety category for dust: None
Radio standard UMTS: FALSE
Depth: 76
Explosion safety category for gas: None
Supporting protocol for DeviceNet Safety: FALSE
Supporting protocol for EtherNet/IP: FALSE
Supporting protocol for Foundation Fieldbus: FALSE
With display: TRUE
Processing time (1K, binary operation): 0.3
Supporting protocol for SafetyBUS p: FALSE
Model: Compact
Voltage type of supply voltage: AC/DC
Type of memory: Other
Supporting protocol for PROFINET CBA: FALSE
Supporting protocol for PROFINET IO: FALSE
Supporting protocol for PROFIsafe: FALSE
Memory size: 0.512
Supporting protocol for ASI: FALSE
Radio standard Bluetooth: FALSE
Supporting protocol for PROFIBUS: FALSE
Appendant operation agent (Ex ia): FALSE
Radio standard WLAN 802.11: FALSE
Supply voltage AC 50 Hz: 12…24 V
Front build in possible: FALSE
Supply voltage AC 60 Hz: 12…24 V
Supporting protocol for TCP/IP: FALSE
Supporting protocol for KNX: FALSE
Supporting protocol for CAN: FALSE
Appendant operation agent (Ex ib): FALSE
Supporting protocol for INTERBUS: FALSE
IO link master: FALSE
Supporting protocol for DeviceNet: FALSE
Rail mounting possible: FALSE
Number of digital outputs: 6
Supporting protocol for MODBUS: TRUE
Suitable for safety functions: FALSE
Number of digital inputs: 6
Supporting protocol for Data-Highway: FALSE
Number of analogue outputs: 3
Supply voltage DC: 22…26 V
Number of analogue inputs: 5
Rack-assembly possible: FALSE
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: TRUE
Supporting protocol for SUCONET: FALSE
Wall mounting/direct mounting: TRUE
Number of HW-interfaces RS-485: 1

Datasheet for TM171OFM22R - Modicon M171 Optimized Flush mounting 22 I/Os, Modbus - Schneider Electric - TM171OFM22R

Download
