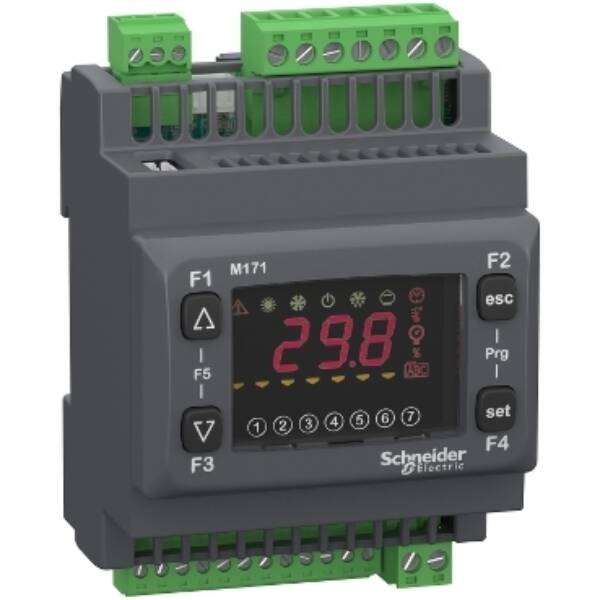

This product is part of the Modicon M171/M172 range, an offer of controllers for HVAC solutions. This controller offers 2 discrete inputs with sink or source (positive/negative) discrete input logic. The rated supply voltage ranges from 100V to 240V, ±10% AC. It is an IP20 rated product. Its dimensions are 70.2mm (width) x 61.7mm (depth) x 87mm (height). It weighs 0.19kg. The main application of this module is HVAC and pumping solution. This product is certified by CE, CURus, CSA and EAC. It meets EN/IEC 60730 standard. It is suitable for DIN rail mount. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.

Brand

Schneider Electric

Range

Modicon M171/M172/M173

Part No

TM171ODM14R

Weight (kg)

0.30 kg

Type

Modicon M171/M172

Supporting protocol for SERCOS

FALSE

Number of HW-interfaces other

1

SIL according to IEC 61508

None

Number of relay outputs

4

With optical interface

FALSE

Additional program memory possible

FALSE

System accessory

TRUE

Performance level acc. EN ISO 13849-1

None

Radio standard GPRS

FALSE

Height

87

Supporting protocol for INTERBUS-Safety

FALSE

Category according to EN 954-1

1

Width

70.2

Redundancy

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Explosion safety category for dust

None

Radio standard GSM

FALSE

Radio standard UMTS

FALSE

Depth

61.6

Explosion safety category for gas

None

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

With display

TRUE

Model

Compact

Processing time (1K, binary operation)

0.3

Supporting protocol for SafetyBUS p

FALSE

Voltage type of supply voltage

AC/DC

Type of memory

Other

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Memory size

0.512

Supporting protocol for PROFIsafe

FALSE

Supporting protocol for ASI

FALSE

Radio standard Bluetooth

FALSE

Radio standard WLAN 802.11

FALSE

Appendant operation agent (Ex ia)

FALSE

Supporting protocol for PROFIBUS

FALSE

Supply voltage AC 50 Hz

100…240 V

Supporting protocol for TCP/IP

FALSE

Front build in possible

FALSE

Supply voltage AC 60 Hz

100…240 V

Supporting protocol for KNX

FALSE

Appendant operation agent (Ex ib)

FALSE

Supporting protocol for CAN

FALSE

IO link master

FALSE

Supporting protocol for INTERBUS

FALSE

Rail mounting possible

TRUE

Supporting protocol for DeviceNet

FALSE

Supporting protocol for MODBUS

TRUE

Suitable for safety functions

FALSE

Number of digital outputs

4

Supporting protocol for Data-Highway

FALSE

Number of digital inputs

2

Number of analogue outputs

3

Number of analogue inputs

5

Rack-assembly possible

FALSE

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

TRUE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

FALSE

Number of HW-interfaces RS-485

1
