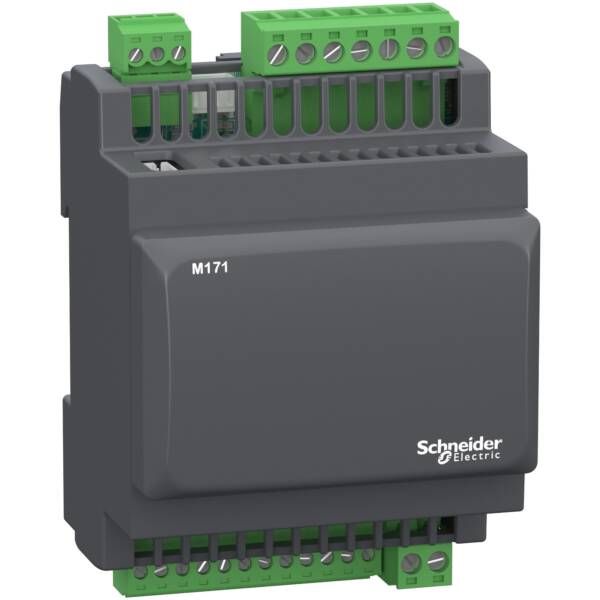

"This logic controller is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications." "This controller figures 2 digital inputs, 5 configurable analog inputs, 4 digital outputs, and 5 analog outputs." "This programmable controller embeds 2 communication ports for RS485 and LAN expansion bus." "It is a programmable logic controller for HVAC and Pumping applications." "DIs are open collectors, AIs are NTC, PT1000, 0-20mA, 4-20mA, 0-10V, 0-5V, 0-1V." "DOs are SPST or SPDT (2A, 230Vac) with the same common, AOs are open collectors for 12V PWM/PPM, or 0-10V, 4-20mA." "It measures 70.2mm wide, 61.6mm deep, 87mm high, and weighs 0.190kg." 0 "This controller is designed for HVAC solutions." "It is certified by CE, CURus, CSA and EAC." "It is compatible with screw terminal blocks, remote display, and communication modules." "It is sold in a 1-piece package." "It is designed for 35mm rail mounting." "Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines." "Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications."

Brand

Schneider Electric

Range

Modicon M171/M172/M173

Part No

TM171OBM14R

Weight (kg)

0.28 kg

Type

Modicon M171/M172

Supporting protocol for SERCOS

FALSE

Number of HW-interfaces other

1

SIL according to IEC 61508

None

Number of relay outputs

4

With optical interface

FALSE

System accessory

TRUE

Additional program memory possible

FALSE

Performance level acc. EN ISO 13849-1

None

Radio standard GPRS

FALSE

Height

87

Supporting protocol for INTERBUS-Safety

FALSE

Category according to EN 954-1

1

Width

70.2

Redundancy

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Radio standard GSM

FALSE

Explosion safety category for dust

None

Radio standard UMTS

FALSE

Depth

61.6

Explosion safety category for gas

None

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

With display

FALSE

Model

Compact

Supporting protocol for SafetyBUS p

FALSE

Processing time (1K, binary operation)

0.3

Voltage type of supply voltage

AC/DC

Type of memory

Other

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Memory size

0.512

Supporting protocol for ASI

FALSE

Radio standard Bluetooth

FALSE

Appendant operation agent (Ex ia)

FALSE

Supporting protocol for PROFIBUS

FALSE

Radio standard WLAN 802.11

FALSE

Supply voltage AC 50 Hz

100…240 V

Supply voltage AC 60 Hz

100…240 V

Supporting protocol for TCP/IP

FALSE

Front build in possible

FALSE

Supporting protocol for KNX

FALSE

Appendant operation agent (Ex ib)

FALSE

Supporting protocol for CAN

FALSE

IO link master

FALSE

Supporting protocol for INTERBUS

FALSE

Supporting protocol for DeviceNet

FALSE

Rail mounting possible

TRUE

Suitable for safety functions

FALSE

Supporting protocol for MODBUS

TRUE

Number of digital outputs

4

Supporting protocol for Data-Highway

FALSE

Number of digital inputs

2

Number of analogue outputs

3

Number of analogue inputs

5

Rack-assembly possible

FALSE

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

TRUE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

FALSE

Number of HW-interfaces RS-485

1
