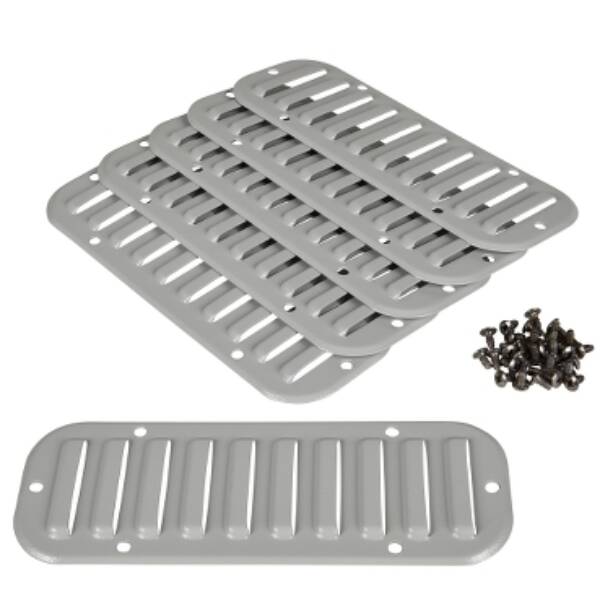

Metal outlet grille cut-out 180x62mm ext dim 208x90mm IP20 - Schneider Electric - NSYCAG180X62M

Metal outlet grille cut-out 180x62mm ext dim 208x90mm IP20 - Schneider Electric - NSYCAG180X62M

NSYCAG180X62M

Metal outlet grille cut-out 180x62mm ext dim 208x90mm IP20 - Schneider Electric - NSYCAG180X62M

Enclosures

~~List Price £8.43 +VAT~~

Our Price £6.32 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

"Metal louvre plate 90 x 208mm made from steel for enclosures" "The kit is made of 1 fixing elements and 1 metal louvre" "The external width is 90mm" Ingress protection rating (according to IEC 60529) is IP20 Fixing by screws on sides of enclosure Cut-out dimensions is 180 x 62mm Painted in grey (RAL 7035) Anti-corrosion protection is ensured by epoxy-polyester powder coating "This product is qualified as a green premium, with minimal use of hazardous substances"

Brand: Schneider Electric
Range: ClimaSys CA
Part No: NSYCAG180X62M
Weight (kg): 0.16 kg
Type: ClimaSys CA
Suitable for enclosure building width: 62
Suitable for enclosure building depth: 800
For max. number of fans: 1
Width: 90
With built-in filter: FALSE
Height: 208
Degree of protection (IP): IP20
Surface finishing: Lacquered
Material: Steel
Mounting method: Screw mounting

Datasheet for NSYCAG180X62M - Metal outlet grille cut-out 180x62mm ext dim 208x90mm IP20 - Schneider Electric - NSYCAG180X62M

Download
