Metal industrial box plain door H300xW800xD120 IP66 IK10 RAL 7035 - Schneider Electric - NSYSBM308012

Metal industrial box plain door H300xW800xD120 IP66 IK10 RAL 7035 - Schneider Electric - NSYSBM308012

NSYSBM308012

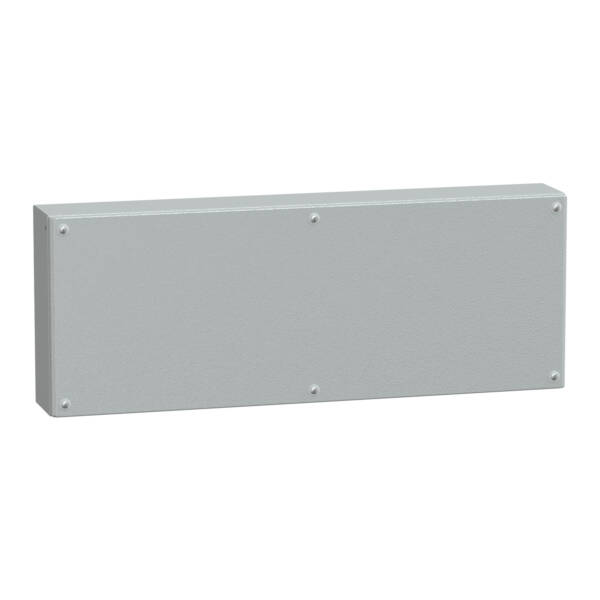

Metal industrial box plain door H300xW800xD120 IP66 IK10 RAL 7035 - Schneider Electric - NSYSBM308012

Enclosures

~~List Price £159.27 +VAT~~

Our Price £119.45 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

Industrial box for PanelSeT SBM. Multi purpose. 300 x 800 x 120 mm. Flat face box. Wall mounted on enclosure. Single piece body folded and welded. Cover fixing with half turn metal srew. Cover by 4 captive screw PZ2 outside sealed area. Made sheet of stee with polyester powder finish. Protection IP 66, IK10.

Brand: Schneider Electric
Range: PanelSeT SBM
Part No: NSYSBM308012
Weight (kg): 8.73 kg
Type: Spacial SBM
Surface protection: Other
For Ex-zone gas: None
With cover: TRUE
Extension possible: FALSE
Operating temperature: -35…80 Degrees celsius
RAL-number: 7035
With transparent cover: FALSE
Degree of protection (IP): IP66
Compliant with BS 6220: FALSE
Maintenance free in accordance with BS 5733: TRUE
Material plate thickness cabinet: 12
Colour: Grey
Length: 300
Width: 800
Circuit integrity: None
Material: Steel
Sealable: FALSE
Cover attachment: Screwed
Mounting method: Surface mounted
Halogen free: TRUE
Connection type: Screwed terminal
For Ex-Zone dust: None
Depth: 120
Impact strength: IK10
Shape: Rectangular
Degree of protection (NEMA): 4X
Explosion-tested version: FALSE

Datasheet for NSYSBM308012 - Metal industrial box plain door H300xW800xD120 IP66 IK10 RAL 7035 - Schneider Electric - NSYSBM308012

Download
