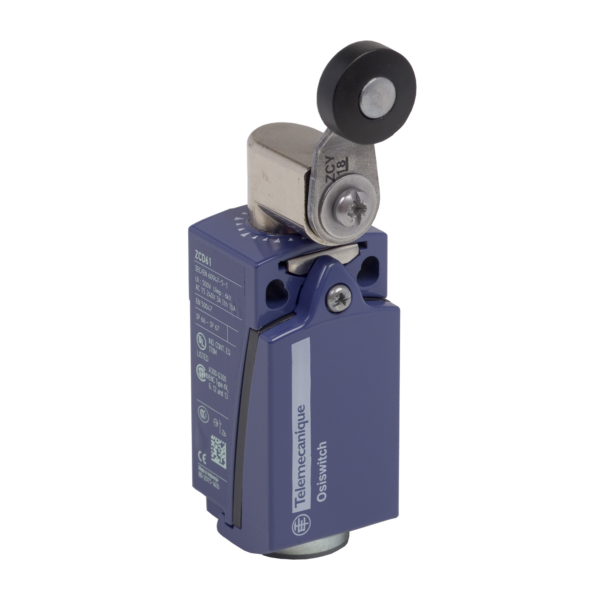

The XCKD is part of the OsiSense IEC limit switches. It is ideal for all industrial machines like packaging, materials handling, conveyors, machining, food and beverage. This limit switch has a robust Zamak body and head, a modular design allowing easier maintenance and a compact CENELEC EN50047 format. It has one normally closed and one normally open with Form Zb, slow break contacts. This limit switch has a A300 and Q300 contact ratings. The spring return mechanism with a metal roller operating lever supports lateral approach, two directions, and switch actuation by 30° cam. It is furnished with screw clamp terminals for electrical connection. Limit switch has one entry tapped for PG11 cable gland. It is compliant with UL, CSA, CCC, and EN/IEC standards and is IP66 and IP67 rated. This product is certified by CCC, CSA and UL. It meets EN 60204-1, IEC 60947-5-1, CSA C22.2 No 14, IEC 60204-1, EN 60947-5-1 and UL 508 standards. Limit switches for contact sensing of inflexible objects. An offer of positive opening snap action contacts for a simpler and safer machine design. IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM limit switches ranges.

Brand

Telemecanique Sensors

Range

OsiSense XC standard Limit Switches

Part No

XCKD6802G11

Weight (kg)

0.16 kg

Type

OsiSense XC standard Limit Switches
