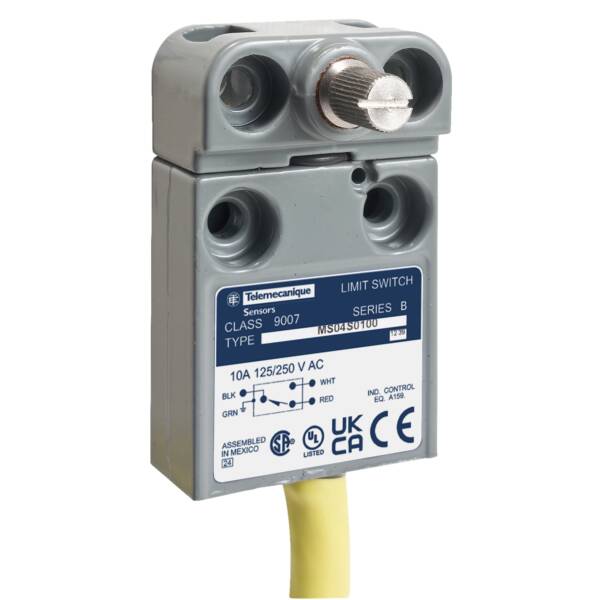

This product is part of the Nema Limit Switches range. This limit switch is a device that converts a mechanical motion into an electrical control signal. It has 1 NC and 1 NO, SPDT (single pole double throw) form C, snap action contacts. The limit switch has a spring return without operating lever operator and supports the lateral approach in 2 directions. The movement of operating head is rotary. It is a limit switch with a rated voltage of 240V AC and rated operating current of 10A. It is furnished with pre-wired cable bottom for electrical connection. It is an IP67 and NEMA 1/2/4/6/6P/12/13 rated product. This rotary head limit switch has a fixed body, made of cast zinc. Its dimensions are 39.62mm (width) x 15.75mm (depth) x 63.25mm (height). It weighs 0.54kg. This product is certified by CE, UL Listed and CSA. It meets LR 25490 Class 32 11 03 and E78403 standards. The 9007MS/ML heavy duty metal miniature enclosed switches with a 39mm metal body, potted and pre wired with cable and connector options available. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.

Brand

Telemecanique Sensors

Range

Nema Limit Switches

Part No

9007MS04S0300

Weight (kg)

0.51 kg

Type

Nema Limit Switches
