HMIGK2310

Keypad-touchscreen panel color - 320 x 240 pixels QVGA- 5.7" - TFT LCD - Schneider Electric - HMIGK2310

Automation

~~List Price £2,202.32 +VAT~~

Our Price £1,871.97 +VAT

SAVE 16% OFF List Price

Estimated delivery between 7-10 working days

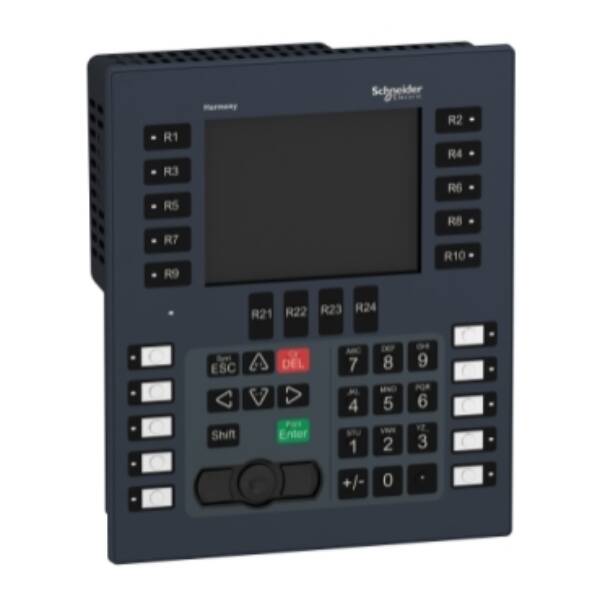

This Magelis GK keypad-touchscreen operator interface (HMI) is supplied with 24V DC, has a 5.7" color TFT LCD display with, 320 x 240 pixels (QVGA), a complete keypad and 128MB EPROM. It also has 1 SD card slot, 1 host + 1 mini-B USB ports, 1 RS232C port, 1 RS485 port and 1 Ethernet TCP/IP port. It is ideal for complete control of an automation system in industry such as complex machines, CNC machines, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. It also offers 14 dynamic function keys, 10 static function keys, 12 alphanumeric keys, 8 service keys and an industrial mouse pointer. Its RS485 host port makes it ideal to supervise and control simple systems and machines.

Brand: Schneider Electric
Range: Harmony GK
Part No: HMIGK2310
Weight (kg): 4.11 kg
Type: Harmony GK
With message indication: TRUE
Supporting protocol for SERCOS: FALSE
Number of function buttons, programmable: 14
Number of HW-interfaces USB: 2
Useful project memory/user memory: 128000
With numeric keyboard: FALSE
With alpha numeric keyboard: TRUE
Degree of protection (NEMA), front side: 4X
Number of buttons with LED: 24
Radio standard GPRS: FALSE
With message system (incl. buffer and confirmation): TRUE
Process value representation (output) possible: TRUE
Supporting protocol for INTERBUS-Safety: FALSE
Type of display: TFT
With printer output: TRUE
Process default value (input) possible: TRUE
Supporting protocol for AS-Interface Safety at Work: FALSE
With recipes: TRUE
Radio standard GSM: FALSE
Degree of protection (IP), front side: IP65/IP67
Radio standard UMTS: FALSE
Additional software components, loadable: TRUE
Touch technology: Resistive touch
Supporting protocol for DeviceNet Safety: FALSE
Supporting protocol for EtherNet/IP: FALSE
Supporting protocol for Foundation Fieldbus: FALSE
With SW interfaces: TRUE
Operation temperature: 0…55 °C
Screen diagonal: 5.7
Number of system buttons: 8
Built-in depth: 70
Supporting protocol for SafetyBUS p: FALSE
Voltage type of supply voltage: AC/DC
Supporting protocol for PROFINET CBA: FALSE
Supporting protocol for PROFINET IO: FALSE
Supporting protocol for PROFIsafe: FALSE
Supporting protocol for ASI: FALSE
Radio standard Bluetooth: FALSE
Radio standard WLAN 802.11: FALSE
Supporting protocol for PROFIBUS: FALSE
Supporting protocol for TCP/IP: TRUE
Supporting protocol for KNX: FALSE
Number of pixels, horizontal: 1024
Supporting protocol for CAN: FALSE
With colour display: TRUE
Supporting protocol for INTERBUS: FALSE
Number of colours of the display: 65536
IO link master: FALSE
Supporting protocol for DeviceNet: FALSE
Rail mounting possible: FALSE
Width of the front: 220
Suitable for safety functions: TRUE
Supporting protocol for MODBUS: TRUE
Height of the front: 265
Supporting protocol for Data-Highway: FALSE
Supply voltage DC: 24 V
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: TRUE
Supporting protocol for SUCONET: FALSE
Wall mounting/direct mounting: TRUE
Number of HW-interfaces RS-485: 1
Number of pixels, vertical: 1024
Number of HW-interfaces industrial Ethernet: 1
Number of HW-interfaces RS-232: 1

Datasheet for HMIGK2310 - Keypad-touchscreen panel color - 320 x 240 pixels QVGA- 5.7" - TFT LCD - Schneider Electric - HMIGK2310

Download
