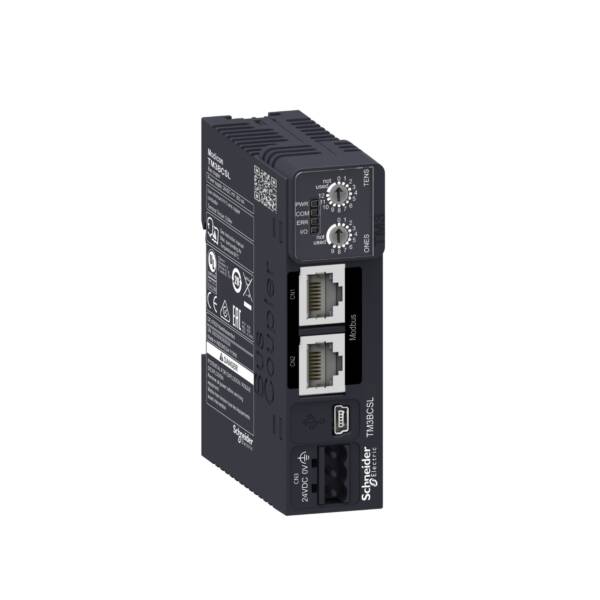

"This product is part of Modicon TM3, a range of expansion I/O modules for Modicon plcs." "This is a bus coupler for the Modbus serial link." "It has 2 isolated RJ45s to connect to the Serial line bus." "It allows plc to manage the distribution of up to 448 digital I/O and 112 analog I/O through a Modbus serial line." "The data exchange rate is from 1.2kbits/s up to 112.2 kbits/s." "It works via a 24VDC external power supply." "It is an IP20-rated product. It measures 27mm wide 96.5mm high and 70mm deep. It weighs 0.100kg." "It is a device designed to manage serial line communication when using expansion modules with a controller in a distributed architecture." "It is certified by ce, cULus, EAC, RCM, UKCA, and EU RO Mutual Recognition." "This module is compatible with Modicon M262/M241/M251/M221 logic controllers and is configurable with EcoStruxure machine expert software." "It is delivered in 1 package (PCE type)." "It is mounted on a symmetrical DIN rail. Or with a specific kit for plate or panel mounting." "The specially developed Modicon TM3 I/O system enables flexible and customizable expansion of the I/O terminals in all the controllers." "From design and development to commissioning and maintenance, EcoStruxure Machine Expert is a complete machine-building solution."

Brand

Schneider Electric

Range

Modicon TM3

Part No

TM3BCSL

Weight (kg)

0.17 kg

Type

Modicon TM3

Supporting protocol for SERCOS

FALSE

SIL according to IEC 61508

None

System accessory

TRUE

With potential separation

FALSE

Performance level according to EN ISO 13849-1

None

Certified for UL hazardous location division 2

FALSE

Radio standard GPRS

FALSE

Fieldbus connection over separate bus coupler possible

FALSE

Height

96.5

Supporting protocol for INTERBUS-Safety

FALSE

Certified for UL hazardous location class I

FALSE

Certified for UL hazardous location class III

FALSE

Certified for UL hazardous location division 1

FALSE

Certified for UL hazardous location class II

FALSE

Width

27

Supporting protocol for EtherCAT

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Radio standard GSM

FALSE

Explosion safety category for dust

None

Radio standard UMTS

FALSE

Depth

70

Explosion safety category for gas

None

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

Certified for UL hazardous location group C (ethylene)

FALSE

Certified for UL hazardous location group A (acetylene)

FALSE

Certified for UL hazardous location group B (hydrogen)

FALSE

Certified for UL hazardous location group F (carbonaceous dusts)

FALSE

Certified for UL hazardous location group G (non-conductive dusts)

FALSE

Certified for UL hazardous location group D (propane)

FALSE

Certified for UL hazardous location group E (metal dusts)

FALSE

Radio standard LTE

FALSE

Supporting protocol for SafetyBUS p

FALSE

Voltage type (supply voltage)

DC

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Radio standard eGPRS

FALSE

Supporting protocol for ASI

FALSE

Radio standard Bluetooth

FALSE

Radio standard WLAN 802.11

FALSE

Supporting protocol for PROFIBUS

FALSE

Appendant operation agent (Ex ia)

FALSE

Supporting protocol for TCP/IP

FALSE

Front built-in possible

FALSE

Supporting protocol for KNX

FALSE

Appendant operation agent (Ex ib)

FALSE

Supporting protocol for CAN

FALSE

Degree of protection (IP)

IP20

IO link master

FALSE

Supporting protocol for INTERBUS

FALSE

Rail mounting possible

TRUE

Supporting protocol for DeviceNet

FALSE

Supporting protocol for Modbus

FALSE

Suitable for safety functions

FALSE

Supporting protocol for Data-Highway

FALSE

Supply voltage DC

20.4…28.8 Volt

Rack-assembly possible

TRUE

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

FALSE

Number of HW-interfaces industrial Ethernet

1
