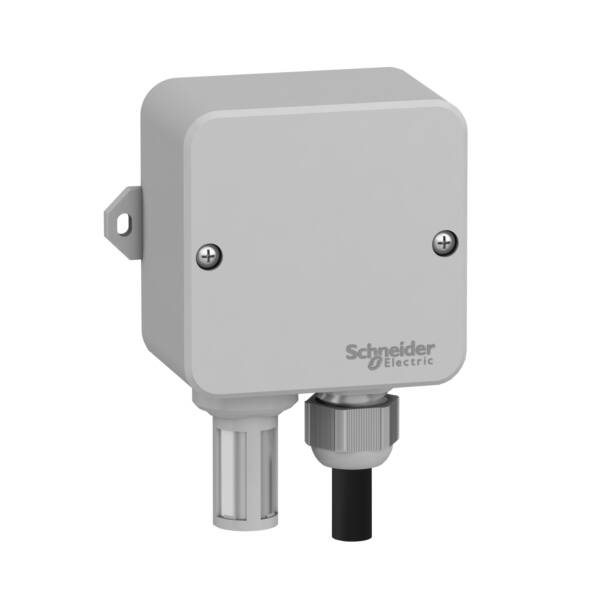

"This measurement accessory is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications." "This probe controls the temperature level from minus 40 to 60 degrees Celsius and humidity level from 0 to 100 percent." "This temperature and humidity probe has an IP 65 rate and is equipped with a Modbus RS485 output." "It is an outdoor wall-mounting probe." "It has one RS485 output." "Its rated supply voltage is 9 to 28VAC or 9 to 40VDC. Its maximum power consumption is 35mA." "It measures 100mm high, 122mm wide, and 50.5mm deep, and weighs 0.140kg." "It is made to control both temperature and humidity in HVAC or Pumping Applications." "It is sold in a 1- or 24-piece package." "It is suitable for panel mounting with 2x diameter4.2mm hole and 89.6mm center distance." "Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines." "Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications."

Brand

Schneider Electric

Range

Modicon M171/M172/M173

Part No

TM1SHTM4

Weight (kg)

0.25 kg

Type

Modicon M171/M172

Error registration possible

FALSE

Trend representation

FALSE

Rated supply voltage AC

40 Volt

Rated supply voltage DC

24…58 Volt

Supporting protocol for MP (multi point)

FALSE

Average temperature measuring

FALSE

Suitable for duct mounting

FALSE

Suitable for ceiling mounting

FALSE

Material element

Other

Fixed cable to sensor

TRUE

With reverse polarity protection

FALSE

Number of measuring points

1

Standby push button

FALSE

Passive temperature measurement

TRUE

Measurement of relative air humidity

FALSE

Ambient temperature

-40…70 Degrees celsius

Wireless

FALSE

Measurement of VOC

FALSE

Scope of application

Other

Suitable for liquids

FALSE

Active temperature measurement

FALSE

Sensor element outside housing

FALSE

Compatible with Apple HomeKit

FALSE

Compatible with Google Assistant

FALSE

Compatible with Amazon Alexa

FALSE

Measurement of CO2

FALSE

Measurement of dewpoint

FALSE

With display

FALSE

Suitable for tube mounting

FALSE

Sensor element inside housing

FALSE

Type of electric connection

Other

NFC (Near Field Communication)

FALSE

Tolerance

5

With housing

FALSE

IFTTT support available

FALSE

Wi-Fi-compatible

FALSE

Suitable for gases

FALSE

Housing colour

Grey

Type of power supply

Other

Supporting protocol for KNX

FALSE

Degree of protection (IP)

IP65

Offset setting possible

FALSE

Enthalpy measurement

FALSE

Potentiometer with adjustment knob

FALSE

Particulate matter measurement (PM)

FALSE

Sensor type

Other

Measurement of absolute air humidity

TRUE

Supporting protocol for BACnet

FALSE

LoRa technology

FALSE

Number of output ranges 0 mA ... 20 mA

2

Suitable for air

TRUE

Max. ambient humidity (non-condensing)

100

Explosion-proof

FALSE

Supporting protocol for Modbus

FALSE

Cover attachment

Screwed

UV resistant

FALSE

Bluetooth

FALSE

Suitable for wall mounting

TRUE

With mounting material

FALSE

Technology

Other

Number of output signals

2
